F127R87DT160L4Detailed Information
Keyword: how to fit 160kw power with hollow axle brakes_f127r87dt160l4_f127r87dre132s4
F127R87DT160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F127R87DT160L4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| F127R87DT160L4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| F127R87DT160L4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
F127r87dre132s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F127R87DRE132S4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| F127R87DRE132S4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| F127R87DRE132S4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| F127R87DRE132S4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| F127R87DRE132S4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| F127R87DRE132S4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
F127 r87dt160l4 motor for reduction machinesType:
F127r87dt160l4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dt160l4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dt160l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dt160l4 sky axis installation parallel axes - slash gears decelerators
Fv127r87dt160l4 spaceline axes installation of parallel axes - tilt-truck detachors
Faf127r87dt160l4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dt160l4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis
Faz127r87dt160l4 is a parallel axle-slash gearer for b14 frank
Fvz127r87dt160l4 is a parallel axle for the b14 flannel axle-slasher
Ff127r87dt160l4 is a parallel to the b5-slash gear brake
Fh127 br87dt160l4 foot hollow axle locks to install parallel axle-slasher
Fh127r87dt160l4 is a parallel axle-slash-slasher for a hollow axle lock
Fhf127r87dt160l4 is a parallel axle for b5 axle lock-drive
Fhz127r87dt160l4 is a parallel axle-slash-slasher for the b14 axle lock

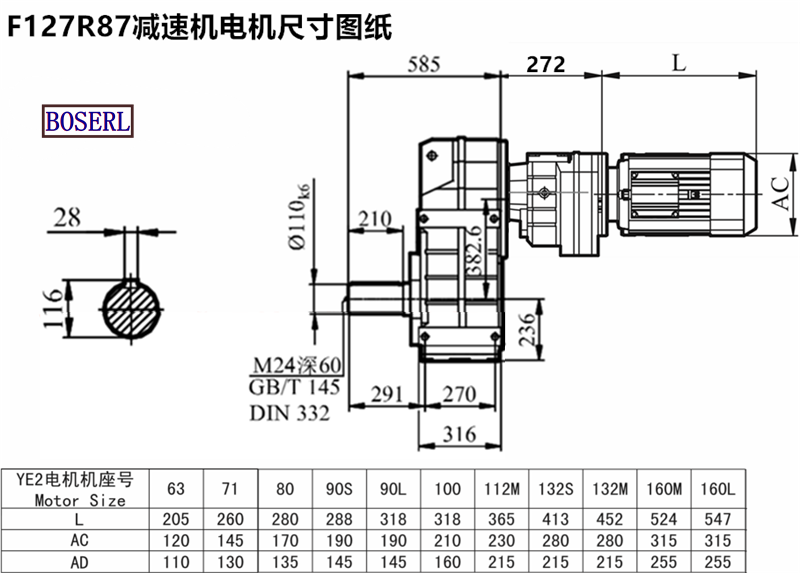

F127 r87dt160l4 motor for reduction machinesInstall size drawings
F127 r87dt160l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: How 160kw power is fitted with hollow axle brake f127r87dt160l4 f127r87dre132s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F127R87DT160L4减速机样本 |
|
| F127R87DT160L4减速机三维图纸 |
|
