R147R87DV112M4Detailed Information
Keyword: how 45kw power is fitted with gear brakes _r147r87dv112m4_r147r87drn100m4
R147R87DV112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R147R87DV112M4 | 462 | 4KW | 3.20r/min | 11000N.m | 509kg | 66100N | 1.15 |
| R147R87DV112M4 | 533 | 4KW | 2.70r/min | 12800N.m | 509kg | 63000N | 1.00 |
| R147R87DV112M4 | 426 | 4KW | 3.40r/min | 10300N.m | 509kg | 67300N | 1.25 |
| R147R87DV112M4 | 368 | 4KW | 4.00r/min | 8930N.m | 509kg | 69200N | 1.45 |
| R147R87DV112M4 | 326 | 4KW | 4.50r/min | 7890N.m | 509kg | 70400N | 1.65 |
| R147R87DV112M4 | 280 | 4KW | 5.20r/min | 6720N.m | 509kg | 71600N | 1.95 |
| R147R87DV112M4 | 247 | 4KW | 5.90r/min | 5930N.m | 509kg | 72300N | 2.20 |
| R147R87DV112M4 | 214 | 4KW | 6.80r/min | 5120N.m | 509kg | 72900N | 2.50 |
| R147R87DV112M4 | 189 | 4KW | 7.70r/min | 4530N.m | 509kg | 73200N | 2.90 |
| R147R87DV112M4 | 159 | 4KW | 9.20r/min | 3810N.m | 509kg | 73600N | 3.40 |
R147R87DRN100M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R147R87DRN100M4 | 462 | 2.2KW | 3.10r/min | 6120N.m | 495kg | 72100N | 2.10 |
| R147R87DRN100M4 | 533 | 2.2KW | 2.70r/min | 7110N.m | 495kg | 71200N | 1.85 |
| R147R87DRN100M4 | 426 | 2.2KW | 3.30r/min | 5750N.m | 495kg | 72400N | 2.30 |
| R147R87DRN100M4 | 368 | 2.2KW | 3.90r/min | 4970N.m | 495kg | 73000N | 2.60 |
| R147R87DRN100M4 | 326 | 2.2KW | 4.40r/min | 4390N.m | 495kg | 73300N | 3.00 |
R147R87DV112M4Speeding machine type:
Rx 147 r87dv112m4 single-step foot installation of tilt gear-reducing motors
Rxf147r87dv112m4 single-class b5 installation slopeMotor geared reducer
R147 r87dv112m4 tilt gear reduction power
R147 fr87dv112m4 bottom foot, b5 franc installation of tilt gear reduction power
Rf147 r87dv112 m4b5 installation of tilt gear reduction power
Rz147r87dv112m4b14 installation of tilt gear-reducing electric power

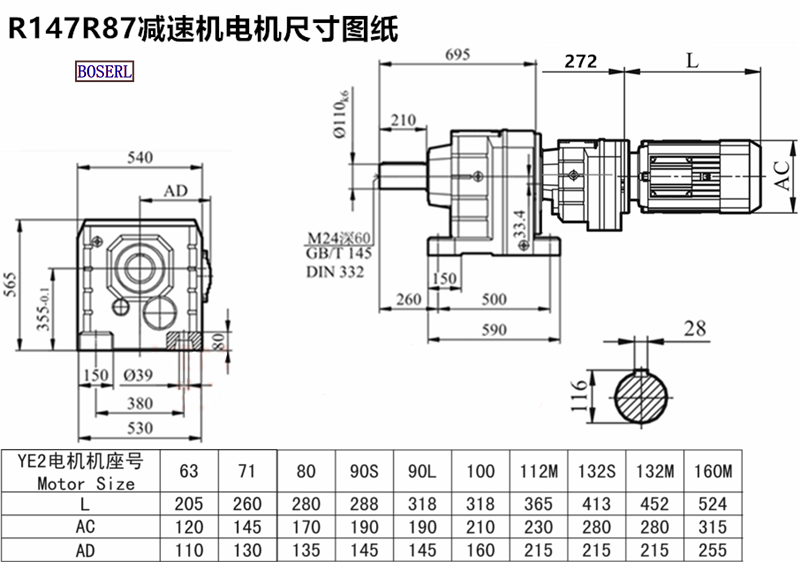

R147R87DV112M4Induction Motor 3Ph motors installed size drawings
R147 r87dv112m4 deviation electric power plant, three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: How 45kw power is fitted with gear brake r147 r87dv112m4 r147r87drn100m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| R147R87DV112M4减速机样本 |
|
| R147R87DV112M4减速机三维图纸 |
|
