F107R77DV80MK4Detailed Information
Keyword: 0. 55 kw power with hollow axle decelerator_f107r77dv80mk4_f107r77drn100ls4
F107R77DV80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F107R77DV80MK4 | 2369 | 0.55KW | 0.58r/min | 8120N.m | 453kg | 48600N | 0.95 |
| F107R77DV80MK4 | 2068 | 0.55KW | 0.67r/min | 7090N.m | 453kg | 51400N | 1.10 |
| F107R77DV80MK4 | 1826 | 0.55KW | 0.76r/min | 6090N.m | 453kg | 53800N | 1.25 |
| F107R77DV80MK4 | 1597 | 0.55KW | 0.86r/min | 5450N.m | 453kg | 55300N | 1.40 |
| F107R77DV80MK4 | 1401 | 0.55KW | 0.98r/min | 4750N.m | 453kg | 56900N | 1.60 |
| F107R77DV80MK4 | 1243 | 0.55KW | 1.10r/min | 4140N.m | 453kg | 58100N | 1.85 |
| F107R77DV80MK4 | 1087 | 0.55KW | 1.30r/min | 3710N.m | 453kg | 59000N | 2.10 |
| F107R77DV80MK4 | 950 | 0.55KW | 1.40r/min | 3170N.m | 453kg | 60100N | 2.40 |
| F107R77DV80MK4 | 834 | 0.55KW | 1.70r/min | 2750N.m | 453kg | 60800N | 2.80 |
| F107R77DV80MK4 | 640 | 0.55KW | 2.20r/min | 2140N.m | 453kg | 61900N | 3.60 |
F107r77drn100ls4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F107R77DRN100LS4 | 560 | 2.2KW | 2.50r/min | 7590N.m | 470kg | 50000N | 1.00 |
| F107R77DRN100LS4 | 489 | 2.2KW | 2.90r/min | 6620N.m | 470kg | 52500N | 1.15 |
| F107R77DRN100LS4 | 640 | 2.2KW | 2.20r/min | 8730N.m | 470kg | 46900N | 0.90 |
| F107R77DRN100LS4 | 436 | 2.2KW | 3.30r/min | 5950N.m | 470kg | 54100N | 1.30 |
| F107R77DRN100LS4 | 370 | 2.2KW | 3.80r/min | 5040N.m | 470kg | 56200N | 1.50 |
| F107R77DRN100LS4 | 333 | 2.2KW | 4.30r/min | 4540N.m | 470kg | 57300N | 1.70 |
F107r77dv80mk4 reduction motor Type:
F107r77dv80mk4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dv80mk4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv107br77dv80mk4 bottom feet sky axes installation of parallel axes - tilt gear deviators
Fa107r77dv80mk4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dv80mk4 sky axis installation of parallel axes - tilt-truck deviators
Faf107r77dv80mk4 is a parallel axle of the b5 aerocentric axle-slasher
Fvf107r77dv80mk4 is a parallel axle for b5 flannel axle-slasher
Faz107r77dv80mk4 is a parallel to b14fanan installation of a side axle - a slasher
Fvz107r77dv80mk4 is a parallel axle for b14 flannel core-slash gear-reducing machine
Ff107r77dv80mk4 is a parallel to the b5-slash gear reduction machine
Fh107 br77dv80mk 4 foot hollow axle locks to install parallel axes-slash gear reduction machines
Fh107r77dv80mk4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dv80mk4 is the parallel axle of the b5 axle lock plate - the slasher
Fhz107r77dv80mk4 is the parallel axle of the b14 axle lock, a slasher

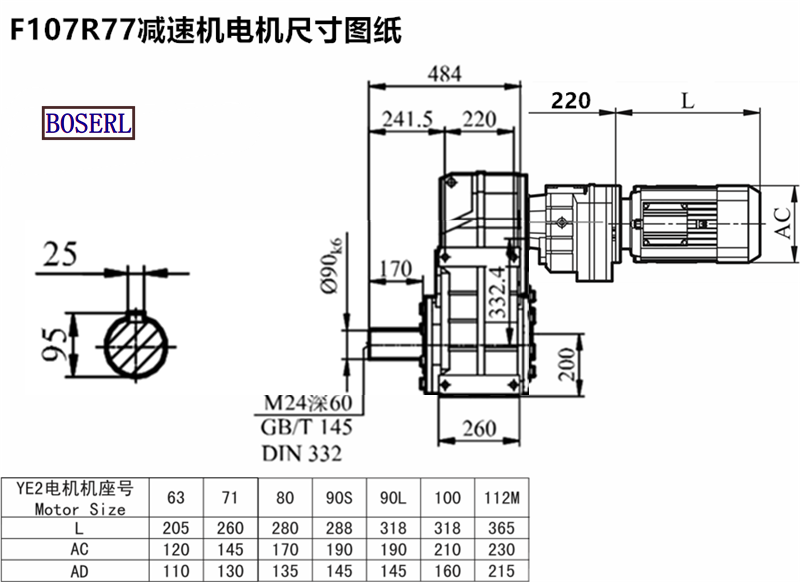

F107r77dv80mk4 reduction motor Install size drawings
F107r77dv80mk4 reduction motor The manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
