F127DRE200L4Detailed Information

F127DRE200L4
prevnext

F127DRE200L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: Output transfer number 140.5r/minreducing machine _F127DRE200L4_F127DVE200L4_140.5rpm _ one minutereducing machine _140.5r gear-receiving tank motor _140.5r/min/minutereducing machine _140.5rpm

F127DRE200L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
F127DRE200L475.4130KW20.0rpm14600N.m953kg64500N0.80
F127DRE200L470.0730KW21.0rpm13600N.m953kg65700N0.90
F127DRE200L463.9130KW23.0rpm12400N.m953kg66800N0.95
F127DRE200L455.3130KW27.0rpm10700N.m953kg66700N1.10
F127DRE200L448.8030KW30.0rpm9470N.m953kg66300N1.25
F127DRE200L442.1530KW35.0rpm8180N.m953kg65500N1.45
F127DRE200L437.2830KW40.0rpm7240N.m953kg64700N1.65
F127DRE200L426.8630KW55.0rpm5210N.m953kg61800N1.65
F127DRE200L424.5730KW60.0rpm4770N.m953kg60800N1.80
F127DRE200L431.3330KW47.0rpm6080N.m953kg63200N1.95
F127DRE200L425.3030KW58.0rpm4910N.m953kg61100N2.40
F127DRE200L421.3830KW69.0rpm4150N.m953kg59300N2.90
F127DRE200L418.8730KW78.0rpm3660N.m953kg57900N3.00

F127dve200l4reducing motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
F127DVE200L475.4130KW20.0rpm14600N.m953kg64500N0.80
F127DVE200L470.0730KW21.0rpm13600N.m953kg65700N0.90
F127DVE200L463.9130KW23.0rpm12400N.m953kg66800N0.95
F127DVE200L455.3130KW27.0rpm10700N.m953kg66700N1.10
F127DVE200L448.8030KW30.0rpm9470N.m953kg66300N1.25
F127DVE200L442.1530KW35.0rpm8180N.m953kg65500N1.45
F127DVE200L437.2830KW40.0rpm7240N.m953kg64700N1.65
F127DVE200L426.8630KW55.0rpm5210N.m953kg61800N1.65
F127DVE200L424.5730KW60.0rpm4770N.m953kg60800N1.80
F127DVE200L431.3330KW47.0rpm6080N.m953kg63200N1.95
F127DVE200L425.3030KW58.0rpm4910N.m953kg61100N2.40
F127DVE200L421.3830KW69.0rpm4150N.m953kg59300N2.90
F127DVE200L418.8730KW78.0rpm3660N.m953kg57900N3.00

F127dre200l4 reductionType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

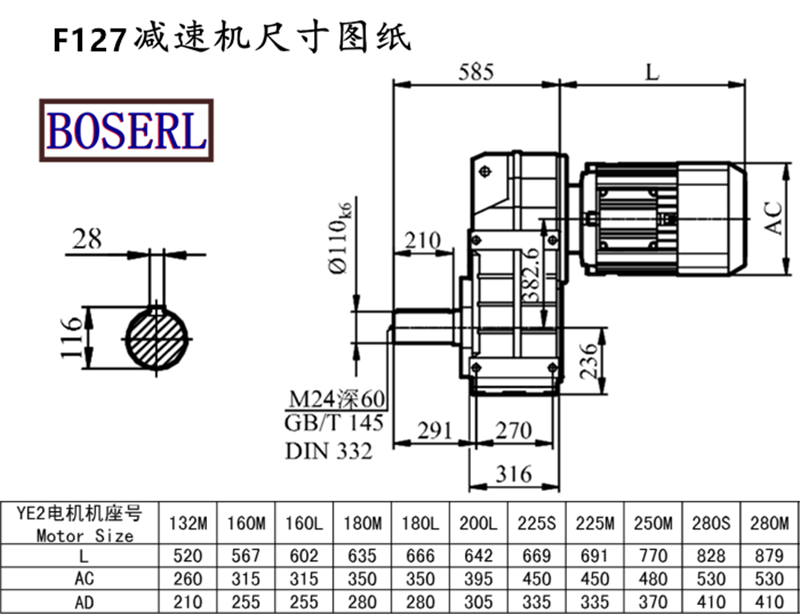

F127dre200l4 reductionInstall size drawings



F127dre200l4 reductionThe manufacturer, please make an appointment three days in advanceInduction motor

Induction motor,Reducer complete assembly,Electric motors Gearboc

F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor

F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
