F157R97DM80N4Detailed Information
Keywords: how 90kw power sets up a flat-ing box _f157r97dm80n4_f157r97drrs100lc4
F157R97DM80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DM80N4 | 2780 | 0.75KW | 0.52r/min | 11700N.m | 1,067kg | 114600N | 1.55 |
| F157R97DM80N4 | 1674 | 0.75KW | 0.86r/min | 7310N.m | 1,067kg | 120000N | 2.50 |
| F157R97DM80N4 | 2427 | 0.75KW | 0.59r/min | 10300N.m | 1,067kg | 116800N | 1.75 |
| F157R97DM80N4 | 1308 | 0.75KW | 1.10r/min | 5640N.m | 1,067kg | 120000N | 3.20 |
| F157R97DM80N4 | 1169 | 0.75KW | 1.20r/min | 4980N.m | 1,067kg | 120000N | 3.60 |
F157r97drrs100lc4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DRS100LC4 | 1169 | 3KW | 1.20r/min | 21100N.m | 1,086kg | 89500N | 0.85 |
| F157R97DRS100LC4 | 953 | 3KW | 1.50r/min | 17100N.m | 1,086kg | 102800N | 1.05 |
| F157R97DRS100LC4 | 845 | 3KW | 1.70r/min | 15100N.m | 1,086kg | 107900N | 1.20 |
| F157R97DRS100LC4 | 764 | 3KW | 1.90r/min | 13500N.m | 1,086kg | 111100N | 1.30 |
| F157R97DRS100LC4 | 680 | 3KW | 2.10r/min | 12000N.m | 1,086kg | 114000N | 1.50 |
| F157R97DRS100LC4 | 576 | 3KW | 2.50r/min | 10100N.m | 1,086kg | 117000N | 1.75 |
| F157R97DRS100LC4 | 446 | 3KW | 3.30r/min | 7980N.m | 1,086kg | 119800N | 2.20 |
| F157R97DRS100LC4 | 302 | 3KW | 4.80r/min | 5400N.m | 1,086kg | 120000N | 3.30 |
| F157R97DRS100LC4 | 273 | 3KW | 5.30r/min | 4860N.m | 1,086kg | 120000N | 3.70 |
| F157R97DRS100LC4 | 232 | 3KW | 6.30r/min | 4080N.m | 1,086kg | 120000N | 4.40 |
| F157R97DRS100LC4 | 197 | 3KW | 7.40r/min | 3460N.m | 1,086kg | 120000N | 5.20 |
F157r97dm80n4 deviation motorType:
F157r97dm80n4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dm80n4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dm80n4 bottom feet cascular axes installation of parallel axes - tilt-steal gear deviator
Fa157r97dm80n4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dm80n4 cascade axis installed parallel axle-slash gear reduction machine
Faf157r97dm80n4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dm80n4 is a parallel axle of b5 flannel cardiac axle-slasher
Faz157r97dm80n4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz157r97dm80n4 is a parallel axle of the b14 flannel axle-slasher
Ff157r97dm80n4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dm80n4 foot hollow axle locks with parallel axes-slash gear-reducing machines
Fh157r97dm80n4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157r97dm80n4 is a parallel axle-slasher for b5 axle locks
Fhz157r97dm80n4 is a parallel axle for the b14 axle lock-drive

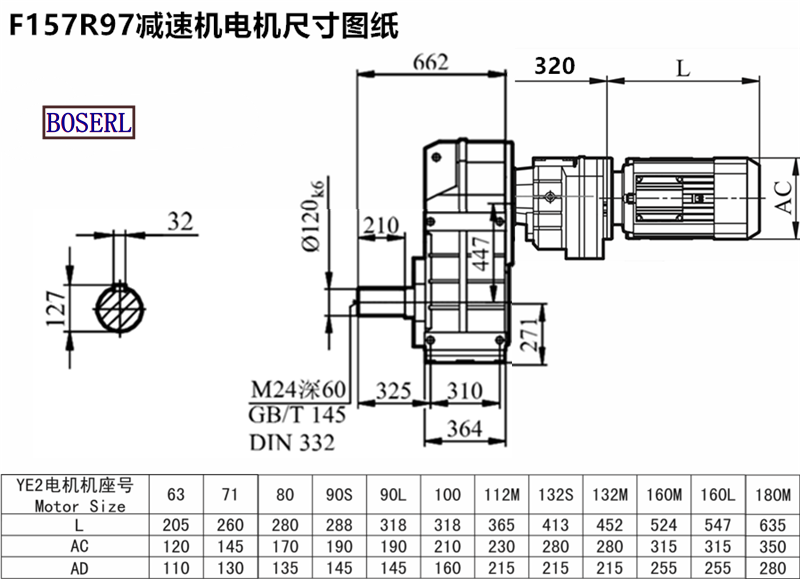

F157r97dm80n4 deviation motorInstall size drawings
F157r97dm80n4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
