F157R97DR132L4Detailed Information
Keywords: how 132kw electrics fit into a flat-ing box_f157r97dr132l4_f157r97dve80n4
F157R97DR132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DR132L4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| F157R97DR132L4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| F157R97DR132L4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| F157R97DR132L4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| F157R97DR132L4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| F157R97DR132L4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| F157R97DR132L4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| F157R97DR132L4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| F157R97DR132L4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
F157r97dve80n4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DVE80N4 | 2780 | 0.75KW | 0.52r/min | 11700N.m | 1,067kg | 114600N | 1.55 |
| F157R97DVE80N4 | 1674 | 0.75KW | 0.86r/min | 7310N.m | 1,067kg | 120000N | 2.50 |
| F157R97DVE80N4 | 2427 | 0.75KW | 0.59r/min | 10300N.m | 1,067kg | 116800N | 1.75 |
| F157R97DVE80N4 | 1308 | 0.75KW | 1.10r/min | 5640N.m | 1,067kg | 120000N | 3.20 |
| F157R97DVE80N4 | 1169 | 0.75KW | 1.20r/min | 4980N.m | 1,067kg | 120000N | 3.60 |
F157r97dr132l4 reduction motor Type:
F157r97dr132l4 bottom foot installation parallel axes - tilt gearsGearboc
Fa157 br97dr132l4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dr132l4 foot cleavage axis installed parallel axle-slash gear reduction machine
Fa157r97dr132l4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dr132l4 installing parallel axles - slash gear reduction machines
Faf157r97dr132l4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf157r97dr132l4 is a parallel axle with b5 flannel axle-slasher
Faz157r97dr132l4 is a parallel axle of b14-slash gear brakes
Fvz157r97dr132l4 is a parallel axle of the b14 flannel cavity axle-slasher
Ff157r97dr132l4 is a parallel axle for b5-slash gears
Fh157 br97dr132l4 foot hollow axle locks to install parallel axes - slash gears slowers
Fh157r97dr132l4 is a parallel axle-sweet gear-reducing machine installed on an empty axle lock
Fhf157r97dr132l4 is a parallel axle for the b5 axle lock-drive
Fhz157r97dr132l4 is the parallel axle of the b14 axle lock-drive-slasher-slasher

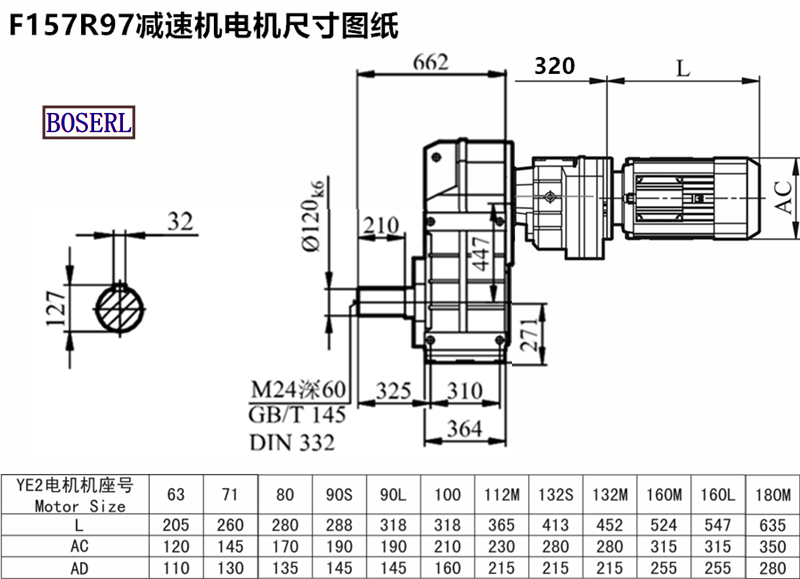

F157r97dr132l4 reduction motor Install size drawings
F157r97dr132l4 reduction motor The manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: How 132kw power is fitted with a stand-down speedbox f157r97dr132l4 f157r97dve80n4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F157R97DR132L4减速机样本 |
|
| F157R97DR132L4减速机三维图纸 |
|
