F157R97DR132ML4Detailed Information
Keywords: how 132kw power sets up a flat-er _f157r97dr132ml4_f157r97dve100ls4
F157R97DR132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DR132ML4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| F157R97DR132ML4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| F157R97DR132ML4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| F157R97DR132ML4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| F157R97DR132ML4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| F157R97DR132ML4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| F157R97DR132ML4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| F157R97DR132ML4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| F157R97DR132ML4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
F157r97dve100ls4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DVE100LS4 | 1441 | 2.2KW | 0.99r/min | 18500N.m | 1,083kg | 98700N | 0.95 |
| F157R97DVE100LS4 | 1308 | 2.2KW | 1.10r/min | 17600N.m | 1,083kg | 101300N | 1.00 |
| F157R97DVE100LS4 | 1169 | 2.2KW | 1.20r/min | 15700N.m | 1,083kg | 106400N | 1.15 |
| F157R97DVE100LS4 | 953 | 2.2KW | 1.50r/min | 12600N.m | 1,083kg | 112900N | 1.40 |
| F157R97DVE100LS4 | 845 | 2.2KW | 1.70r/min | 11100N.m | 1,083kg | 115500N | 1.60 |
| F157R97DVE100LS4 | 764 | 2.2KW | 1.90r/min | 10000N.m | 1,083kg | 117200N | 1.80 |
| F157R97DVE100LS4 | 680 | 2.2KW | 2.10r/min | 8930N.m | 1,083kg | 118700N | 2.00 |
| F157R97DVE100LS4 | 576 | 2.2KW | 2.50r/min | 7490N.m | 1,083kg | 120000N | 2.40 |
| F157R97DVE100LS4 | 446 | 2.2KW | 3.20r/min | 5900N.m | 1,083kg | 120000N | 3.00 |
| F157R97DVE100LS4 | 302 | 2.2KW | 4.70r/min | 3990N.m | 1,083kg | 120000N | 4.50 |
| F157R97DVE100LS4 | 273 | 2.2KW | 5.20r/min | 3590N.m | 1,083kg | 120000N | 5.00 |
| F157R97DVE100LS4 | 232 | 2.2KW | 6.20r/min | 3010N.m | 1,083kg | 120000N | 6.00 |
| F157R97DVE100LS4 | 197 | 2.2KW | 7.30r/min | 2550N.m | 1,083kg | 120000N | 7.00 |
F157r97dr132ml4 deviation motorType:
F157r97dr132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dr132ml 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv157 br97dr132ml4 bottom feet sky axes installation of parallel axes - tilt gear deviators
Fa157r97dr132ml4 sky axes installation of parallel axes - tilted gear deviators
Fv157r97dr132ml4 sky axis installation of parallel axes - tilt-truck deviators
Faf157r97dr132ml4 is a parallel axle-slash gear-reducing machine for b5 aerocentric axis
Fvf157r97dr132ml4 is the parallel axle of the b5-franco-key sky axis - the slasher
Faz157r97dr132ml4 is a parallel to the b14 flange-slash gear reduction machine
Fvz157r97dr132ml4 is a parallel axle for the b14 flannel axle-slasher
Ff157r97dr132ml4 is a parallel axle of b5-slash gear brakes
Fh157 br97dr132 ml4 foot hollow axle lock, parallel axle - slasher
Fh157r97dr132ml4 is a parallel axle-slash-sweet gear-retarder
Fhf157r97dr132ml4 is the parallel axle of the b5 axle lock, which is a slasher
Fhz157r97dr132ml4 is the parallel axle for the b14 axle lock plate-slasher-slasher

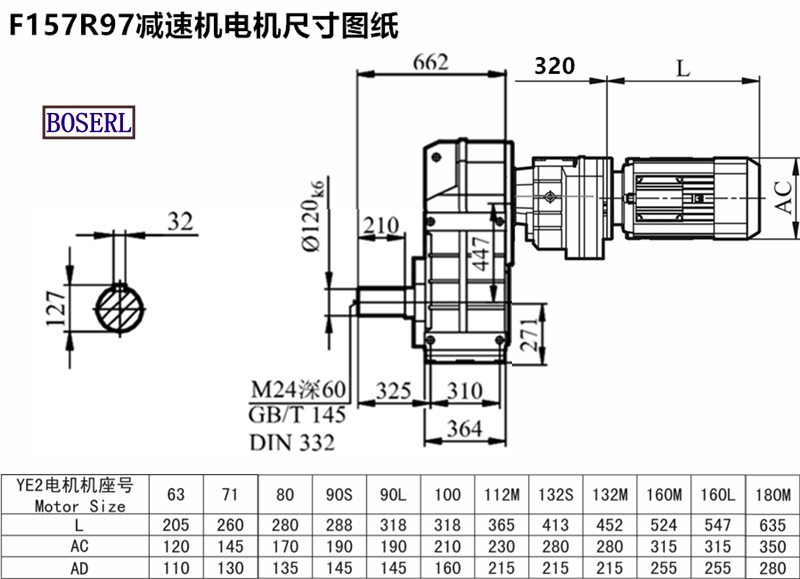

F157r97dr132ml4 deviation motorInstall size drawings
F157r97dr132ml4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: How 132kw power sets up a standing speed-reducing machine f157r97r132ml4 f157r97dve100ls4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F157R97DR132ML4减速机样本 |
|
| F157R97DR132ML4减速机三维图纸 |
|
