F157R97DR132S4Detailed Information
Keywords: how 75kw power sets up a stand-down brake _f157r97dr132s4_f157r97dve180lc4
F157R97DR132S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DR132S4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| F157R97DR132S4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| F157R97DR132S4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| F157R97DR132S4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| F157R97DR132S4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| F157R97DR132S4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| F157R97DR132S4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| F157R97DR132S4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| F157R97DR132S4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
F157r97dve180lc4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DVE180LC4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| F157R97DVE180LC4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
F157r97dr132s4 reduction motor Type:
F157r97dr132s4 bottom foot installation of parallel axes - tilt gearGearboc
Installation of parallel axes - slash gears for reduction on the fa157 br97dr132s4 bottom foot hollow axis
Fv157 br97dr132s4 foot larvae axis installed parallel axes-slash gear reduction machine
Fa157r97dr132s4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dr132s4 sky axis installation of parallel axes - tilted gear deviators
Faf157r97dr132s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dr132s4 is the parallel axle of b5 flannel cores installed - the slasher
Faz157r97dr132s4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz157r97dr132s4 is a parallel axle of the b14 flannel axle-slasher
Ff157r97dr132s4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dr132s4 foot hollow axle locks, parallel axle-slasher
Fh157r97dr132s4 is a parallel axle-slash-slasher for the empty axle lock
Fhf157r97dr132s4 is a parallel axle for the b5 axle lock-drive
Fhz157r97dr132s4 is the parallel axle of the b14 aerocentric lockboards - the slasher

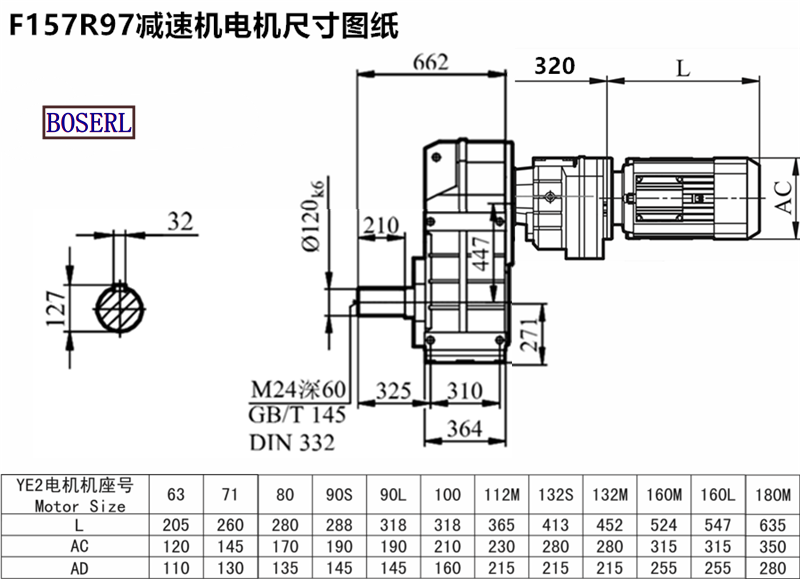

F157r97dr132s4 reduction motor Install size drawings
F157r97dr132s4 reduction motor The manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
