F157R97DV100LC4Detailed Information
Keyword: how to fit 110 kw power with an empty axle reduction box_f157r97dv100lc4_f157r97drrn90l4
F157R97DV100LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DV100LC4 | 1169 | 3KW | 1.20r/min | 21100N.m | 1,086kg | 89500N | 0.85 |
| F157R97DV100LC4 | 953 | 3KW | 1.50r/min | 17100N.m | 1,086kg | 102800N | 1.05 |
| F157R97DV100LC4 | 845 | 3KW | 1.70r/min | 15100N.m | 1,086kg | 107900N | 1.20 |
| F157R97DV100LC4 | 764 | 3KW | 1.90r/min | 13500N.m | 1,086kg | 111100N | 1.30 |
| F157R97DV100LC4 | 680 | 3KW | 2.10r/min | 12000N.m | 1,086kg | 114000N | 1.50 |
| F157R97DV100LC4 | 576 | 3KW | 2.50r/min | 10100N.m | 1,086kg | 117000N | 1.75 |
| F157R97DV100LC4 | 446 | 3KW | 3.30r/min | 7980N.m | 1,086kg | 119800N | 2.20 |
| F157R97DV100LC4 | 302 | 3KW | 4.80r/min | 5400N.m | 1,086kg | 120000N | 3.30 |
| F157R97DV100LC4 | 273 | 3KW | 5.30r/min | 4860N.m | 1,086kg | 120000N | 3.70 |
| F157R97DV100LC4 | 232 | 3KW | 6.30r/min | 4080N.m | 1,086kg | 120000N | 4.40 |
| F157R97DV100LC4 | 197 | 3KW | 7.40r/min | 3460N.m | 1,086kg | 120000N | 5.20 |
F157r97drn90l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DRN90L4 | 1674 | 1.5KW | 0.85r/min | 15200N.m | 1,074kg | 107600N | 1.20 |
| F157R97DRN90L4 | 2427 | 1.5KW | 0.59r/min | 21800N.m | 1,074kg | 86800N | 0.80 |
| F157R97DRN90L4 | 2185 | 1.5KW | 0.65r/min | 19500N.m | 1,074kg | 95400N | 0.90 |
| F157R97DRN90L4 | 1944 | 1.5KW | 0.74r/min | 17300N.m | 1,074kg | 102100N | 1.05 |
| F157R97DRN90L4 | 1308 | 1.5KW | 1.10r/min | 11800N.m | 1,074kg | 114400N | 1.50 |
| F157R97DRN90L4 | 1169 | 1.5KW | 1.20r/min | 10500N.m | 1,074kg | 116500N | 1.70 |
| F157R97DRN90L4 | 953 | 1.5KW | 1.50r/min | 8450N.m | 1,074kg | 119300N | 2.10 |
| F157R97DRN90L4 | 845 | 1.5KW | 1.70r/min | 7410N.m | 1,074kg | 120000N | 2.40 |
| F157R97DRN90L4 | 446 | 1.5KW | 3.20r/min | 3910N.m | 1,074kg | 120000N | 4.60 |
| F157R97DRN90L4 | 302 | 1.5KW | 4.70r/min | 2650N.m | 1,074kg | 120000N | 6.80 |
F157r97dv100lc4 deviation motorType:
F157r97dv100lc4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dv100lc4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dv100lc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dv100lc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dv100lc4 sky axis installation of parallel axes - tilt-truck deviators
Faf157r97dv100lc4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dv100lc4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis
Faz157r97dv100lc4 is a parallel to b14fanan installation of a parallel axle-slasher
Fvz157r97dv100lc4 is the parallel axis of the b14 flannel axle-slasher
Ff157r97dv100lc4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv100lc4 foot hollow axle locks to install parallel axes - slash gear brakes
Fh157r97dv100lc4 is a parallel axle-sweet-pattern reduction machine installed on a hollow axle lock
Fhf157r97dv100lc4 is the parallel axle of the b5 axle lock, a slasher
Fhz157r97dv100lc4 is a parallel axle-slash-slasher for the b14 axle lock

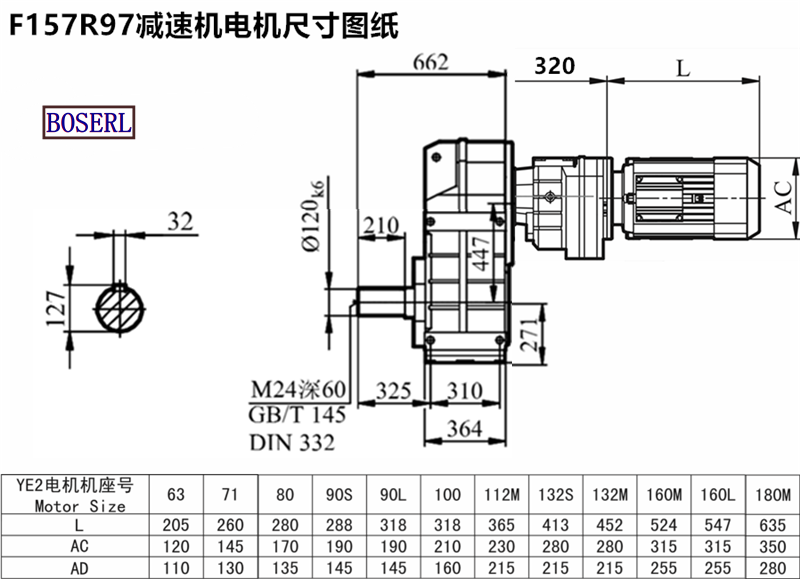

F157r97dv100lc4 deviation motorInstall size drawings
F157r97dv100lc4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 110kw power with an empty axle speed reduction box f157r97dv100lc4 f157r97drn90l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F157R97DV100LC4减速机样本 |
|
| F157R97DV100LC4减速机三维图纸 |
|
