F157R97DV132L4Detailed Information
Keyword: how to fit 110 kw power with an empty axle brake _f157r97dv132l4_f157r97drn160s4
F157R97DV132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DV132L4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| F157R97DV132L4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| F157R97DV132L4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| F157R97DV132L4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| F157R97DV132L4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| F157R97DV132L4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| F157R97DV132L4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| F157R97DV132L4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| F157R97DV132L4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
F157r97drn160s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DRN160S4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| F157R97DRN160S4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| F157R97DRN160S4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| F157R97DRN160S4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| F157R97DRN160S4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
F157r97dv132l4 motor for reduction machinesType:
F157r97dv132l4 bottom foot installation parallel axes - tied gearGearboc
Fa157 br97dv132l4 foot hollow axis installed parallel axle-slash gear brake
Fv157 br97dv132l4 foot larvae axis installed parallel axes - slash gear brakes
Fa157r97dv132l4 sky axes installation of parallel axes - tilted gear deviators
Fv157r97dv132l4 installing parallel axes - slash gear reduction machines
Faf157r97dv132l4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dv132l4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157r97dv132l4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz157r97dv132l4 is a parallel axle for the b14 flannel axle-slasher
Ff157r97dv132l4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv132l4 foot hollow axle lock, parallel axle-slasher
Fh157r97dv132l4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157r97dv132l4 is the parallel axle of the b5 axle lock, a slasher
Fhz157r97dv132l4 is a parallel axle for the b14 axle lock, a slasher

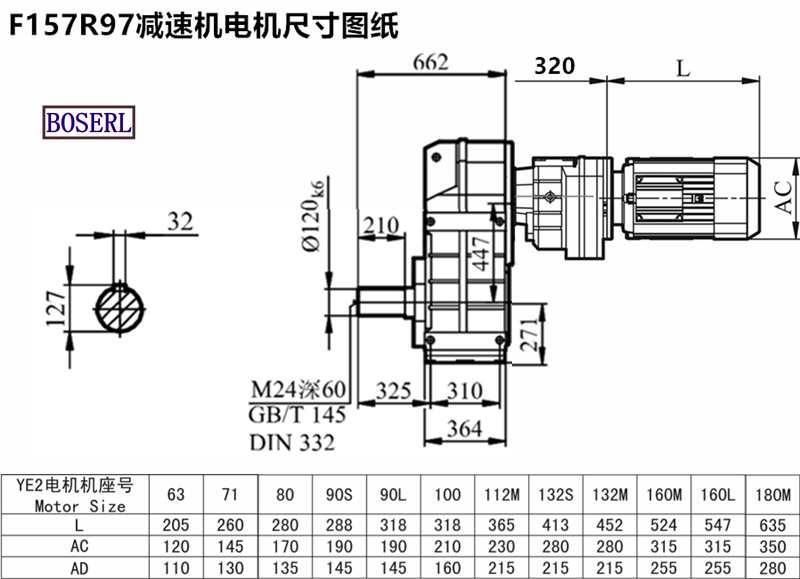

F157r97dv132l4 motor for reduction machinesInstall size drawings
F157r97dv132l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 110kw power with hollow axle speed reduction f157r97dv132l4 f157r97drn160s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F157R97DV132L4减速机样本 |
|
| F157R97DV132L4减速机三维图纸 |
|
