F157R97DV160MC4Detailed Information
Keywords: how to fit 110 kw power with a hollowretarder_f157r97dv160mc4_f157r97drrn80mk4
F157R97DV160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DV160MC4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| F157R97DV160MC4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| F157R97DV160MC4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| F157R97DV160MC4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| F157R97DV160MC4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
F157r97drn80mk4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F157R97DRN80MK4 | 6295 | 0.55KW | 0.22r/min | 20100N.m | 1,066kg | 93100N | 0.90 |
| F157R97DRN80MK4 | 5404 | 0.55KW | 0.26r/min | 16800N.m | 1,066kg | 103500N | 1.05 |
| F157R97DRN80MK4 | 2780 | 0.55KW | 0.50r/min | 8660N.m | 1,066kg | 119000N | 2.10 |
| F157R97DRN80MK4 | 2427 | 0.55KW | 0.57r/min | 7660N.m | 1,066kg | 120000N | 2.40 |
| F157R97DRN80MK4 | 1674 | 0.55KW | 0.82r/min | 5440N.m | 1,066kg | 120000N | 3.30 |
| F157R97DRN80MK4 | 1308 | 0.55KW | 1.10r/min | 4200N.m | 1,066kg | 120000N | 4.30 |
| F157R97DRN80MK4 | 1169 | 0.55KW | 1.20r/min | 3680N.m | 1,066kg | 120000N | 4.90 |
F157r97dv160mc4 deviation motorType:
F157r97dv160mc4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dv160mc4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dv160mc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dv160mc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dv160mc4 installing parallel axes-slash gear reduction machines
Faf157r97dv160mc4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dv160mc4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157r97dv160mc4 is a parallel axle for b14-slash gear reduction
Fvz157r97dv160mc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dv160mc4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv160mc4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh157r97dv160mc4 is the parallel axle-slash-slasher for the empty axle lock
Fhf157r97dv160mc4 is a parallel axle for the b5 axle lock, a slasher
Fhz157r97dv160mc4 is a parallel axle for the b14 axle lock, a slasher

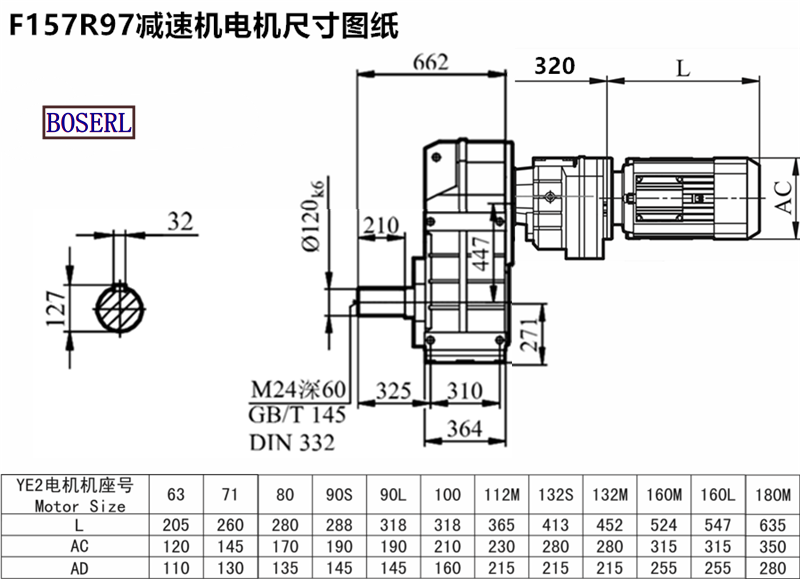

F157r97dv160mc4 deviation motorInstall size drawings
F157r97dv160mc4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
