F37 speed depressor power motionDetailed Information
Keyword: f37reducing electric motor_f37y2. 2kw_f37y3kw_f37reducing machine_f37reducing manufacturer_f37reducing manufacturer
F37Y2.2KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F37Y2.2KW | 14.33 | 2.2KW | 99.0rpm | 210N.m | 45Kg | 2800N | 0.95 |
| F37Y2.2KW | 12.87 | 2.2KW | 111rpm | 190N.m | 45Kg | 2810N | 1.05 |
| F37Y2.2KW | 11.08 | 2.2KW | 129rpm | 163N.m | 45Kg | 2820N | 1.15 |
| F37Y2.2KW | 10.42 | 2.2KW | 137rpm | 154N.m | 45Kg | 2810N | 1.20 |
| F37Y2.2KW | 8.97 | 2.2KW | 159rpm | 132N.m | 45Kg | 2790N | 1.30 |
| F37Y2.2KW | 8.01 | 2.2KW | 178rpm | 118N.m | 45Kg | 2760N | 1.45 |
| F37Y2.2KW | 6.74 | 2.2KW | 211rpm | 99N.m | 45Kg | 2620N | 1.40 |
| F37Y2.2KW | 6.05 | 2.2KW | 236rpm | 89N.m | 45Kg | 2590N | 1.50 |
| F37Y2.2KW | 5.21 | 2.2KW | 273rpm | 77N.m | 45Kg | 2540N | 1.65 |
| F37Y2.2KW | 4.90 | 2.2KW | 291rpm | 72N.m | 45Kg | 2510N | 1.65 |
| F37Y2.2KW | 4.22 | 2.2KW | 338rpm | 62N.m | 45Kg | 2450N | 1.75 |
| F37Y2.2KW | 3.77 | 2.2KW | 378rpm | 56N.m | 45Kg | 2400N | 1.90 |
F37Y3KWInduction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F37Y3KW | 11.08 | 3KW | 131rpm | 215N.m | 48Kg | 2340N | 0.85 |
| F37Y3KW | 10.42 | 3KW | 140rpm | 205N.m | 48Kg | 2360N | 0.90 |
| F37Y3KW | 8.97 | 3KW | 162rpm | 177N.m | 48Kg | 2400N | 1.00 |
| F37Y3KW | 8.01 | 3KW | 182rpm | 158N.m | 48Kg | 2410N | 1.10 |
| F37Y3KW | 6.74 | 3KW | 216rpm | 133N.m | 48Kg | 2290N | 1.05 |
| F37Y3KW | 6.05 | 3KW | 240rpm | 119N.m | 48Kg | 2290N | 1.15 |
| F37Y3KW | 5.21 | 3KW | 279rpm | 103N.m | 48Kg | 2280N | 1.20 |
| F37Y3KW | 4.90 | 3KW | 297rpm | 96N.m | 48Kg | 2270N | 1.25 |
| F37Y3KW | 4.22 | 3KW | 345rpm | 83N.m | 48Kg | 2240N | 1.35 |
| F37Y3KW | 3.77 | 3KW | 386rpm | 74N.m | 48Kg | 2210N | 1.40 |
F37 depressor power motionType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

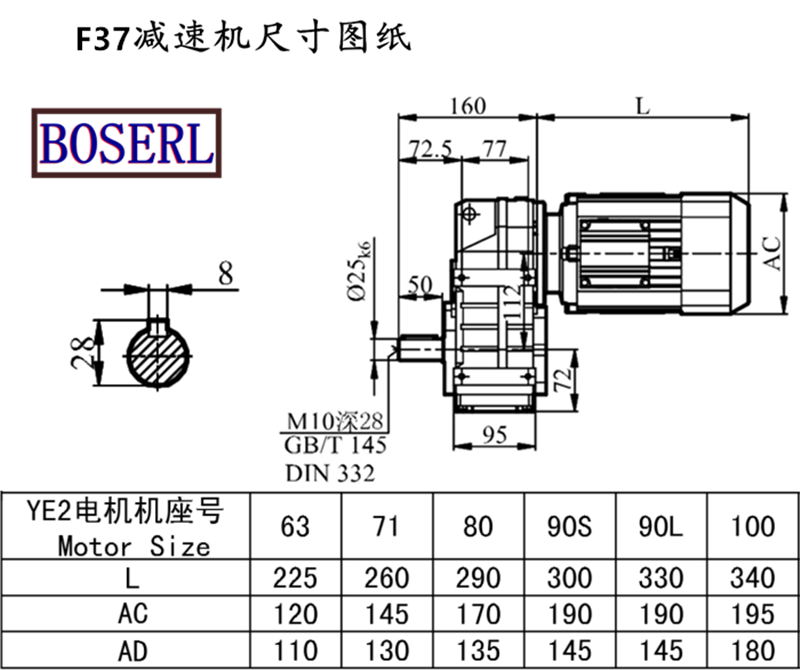

F37 depressor power motionInstall size drawings
F37 depressor power motionThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: f37 decelerator motor f37y2. 2kw f37y3kw f37 speed retardator f37 speed retardator manufacturer f37 speed retardator
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| F37减速器电动机样本 |
|
| F37减速器电动机三维图纸 |
|
