F47DT100LC4Detailed Information
Keyword: 228 horse power motor reduction machine_f47dt100lc4_f47dt100ls4
F47DT100LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F47DT100LC4 | 19.70 | 3KW | 74.0rpm | 385N.m | 53Kg | 4760N | 1.05 |
| F47DT100LC4 | 17.33 | 3KW | 84.0rpm | 340N.m | 53Kg | 4760N | 1.15 |
| F47DT100LC4 | 16.36 | 3KW | 89.0rpm | 320N.m | 53Kg | 4760N | 1.25 |
| F47DT100LC4 | 13.93 | 3KW | 104rpm | 270N.m | 53Kg | 4720N | 1.45 |
| F47DT100LC4 | 12.66 | 3KW | 115rpm | 245N.m | 53Kg | 4690N | 1.60 |
| F47DT100LC4 | 10.97 | 3KW | 133rpm | 215N.m | 53Kg | 4620N | 1.85 |
| F47DT100LC4 | 8.96 | 3KW | 162rpm | 176N.m | 53Kg | 4350N | 1.85 |
F47dt100ls4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F47DT100LS4 | 25.72 | 2.2KW | 55.0rpm | 375N.m | 50Kg | 5560N | 1.05 |
| F47DT100LS4 | 21.82 | 2.2KW | 65.0rpm | 320N.m | 50Kg | 5520N | 1.25 |
| F47DT100LS4 | 19.70 | 2.2KW | 72.0rpm | 290N.m | 50Kg | 5470N | 1.40 |
| F47DT100LS4 | 17.33 | 2.2KW | 82.0rpm | 255N.m | 50Kg | 5400N | 1.55 |
| F47DT100LS4 | 16.36 | 2.2KW | 87.0rpm | 240N.m | 50Kg | 5360N | 1.65 |
| F47DT100LS4 | 13.93 | 2.2KW | 102rpm | 205N.m | 50Kg | 5240N | 1.95 |
| F47DT100LS4 | 12.66 | 2.2KW | 113rpm | 187N.m | 50Kg | 5160N | 2.10 |
| F47DT100LS4 | 10.97 | 2.2KW | 130rpm | 162N.m | 50Kg | 5030N | 2.50 |
| F47DT100LS4 | 8.96 | 2.2KW | 159rpm | 132N.m | 50Kg | 4730N | 2.50 |
F47dt100lc4reducing motorType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

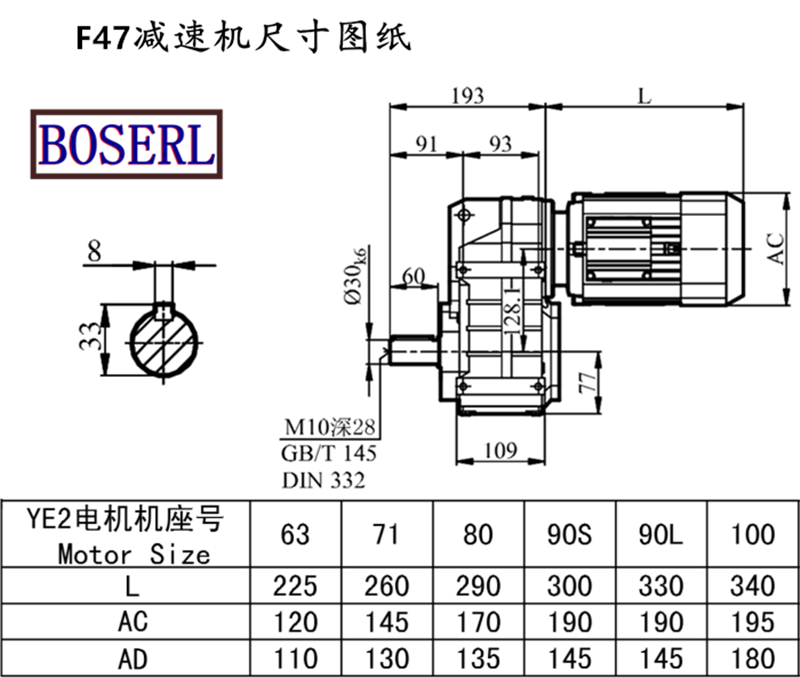

F47dt100lc4reducing motorInstall size drawings
F47dt100lc4reducing motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
