F57RF37-Y0.18KWDetailed Information
Keywords: 0. 18 kw electrics with parallel axle gear reduction box_f57rf37-y0. 18kw_f57rf37-y71m4
F57RF37-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F57RF37-Y0.18KW | 558 | 0.18KW | 2.40r/min | 635N.m | 48.5kg | 7570N | 0.95 |
| F57RF37-Y0.18KW | 506 | 0.18KW | 2.60r/min | 570N.m | 48.5kg | 9420N | 1.05 |
| F57RF37-Y0.18KW | 452 | 0.18KW | 2.90r/min | 495N.m | 48.5kg | 9930N | 1.20 |
| F57RF37-Y0.18KW | 386 | 0.18KW | 3.40r/min | 425N.m | 48.5kg | 10400N | 1.40 |
| F57RF37-Y0.18KW | 338 | 0.18KW | 3.90r/min | 370N.m | 48.5kg | 10700N | 1.60 |
| F57RF37-Y0.18KW | 426 | 0.18KW | 3.10r/min | 500N.m | 48.5kg | 9910N | 1.20 |
| F57RF37-Y0.18KW | 382 | 0.18KW | 3.50r/min | 445N.m | 48.5kg | 10300N | 1.35 |
| F57RF37-Y0.18KW | 330 | 0.18KW | 4.00r/min | 380N.m | 48.5kg | 10700N | 1.55 |
| F57RF37-Y0.18KW | 298 | 0.18KW | 4.40r/min | 340N.m | 48.5kg | 10900N | 1.75 |
| F57RF37-Y0.18KW | 262 | 0.18KW | 5.00r/min | 300N.m | 48.5kg | 11100N | 2.00 |
| F57RF37-Y0.18KW | 226 | 0.18KW | 5.80r/min | 255N.m | 48.5kg | 11400N | 2.30 |
| F57RF37-Y0.18KW | 200 | 0.18KW | 6.60r/min | 220N.m | 48.5kg | 11500N | 2.70 |
F57rf37-y71m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F57RF37-Y71M4 | 255 | 0.37KW | 5.40r/min | 580N.m | 53kg | 9330N | 1.05 |
| F57RF37-Y71M4 | 201 | 0.37KW | 6.90r/min | 455N.m | 53kg | 10200N | 1.30 |
| F57RF37-Y71M4 | 181 | 0.37KW | 7.60r/min | 410N.m | 53kg | 10500N | 1.45 |
| F57RF37-Y71M4 | 262 | 0.37KW | 5.30r/min | 615N.m | 53kg | 9070N | 0.95 |
| F57RF37-Y71M4 | 226 | 0.37KW | 6.10r/min | 525N.m | 53kg | 9740N | 1.15 |
| F57RF37-Y71M4 | 200 | 0.37KW | 6.90r/min | 460N.m | 53kg | 10200N | 1.30 |
| F57RF37-Y71M4 | 170 | 0.37KW | 8.10r/min | 390N.m | 53kg | 10600N | 1.50 |
| F57RF37-Y71M4 | 152 | 0.37KW | 9.00r/min | 345N.m | 53kg | 10900N | 1.70 |
| F57RF37-Y71M4 | 134 | 0.37KW | 10.0r/min | 305N.m | 53kg | 11100N | 1.95 |

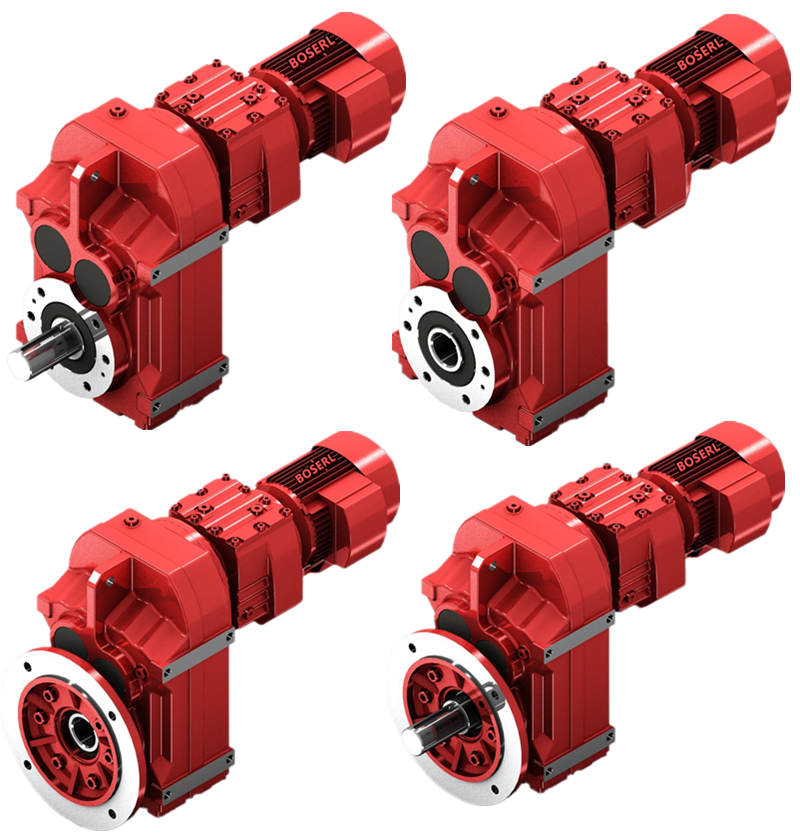

F57rf37-y0. 18kw power driveType:
F57rf37-y0. 18kw bottom foot installation of parallel axes - tilt gearGearboc
Fa57bf37-y0. 18kw foot hollow axis installed parallel axle-slasher
Fv57brf37-y0. 18kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa57rf37-y0. 18kw sky axes installation of parallel axes - tilt gear deviators
Fv57rf37-y0. 18kw sky axis installation of parallel axes - tilt gear deviation
Faf57rf37-y0. 18kw is the parallel axle-slash gear-reducing machine for the b5 franium axle
Fvf57rf37-y0. 18kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz57rf37-y0. 18kw is a parallel axle for b14 flange-slasher
Fvz57rf37-y0. 18kw is the parallel axis of the b14 flannel axle-slasher
Ff57rf37-y0. 18kw is a parallel to the b5-slash gear reduction machine
Fh57brf37-y0. 18kw foot hollow axle lock, parallel axle-slasher
Fh57rf37-y0. 18kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf57rf37-y0. 18kw is a parallel axle-slasher installed on a b5-farland axle lockboard
Fhz57rf37-y0. 18kw is the parallel axle-slasher for b14 flannel axle lockboards-slasher

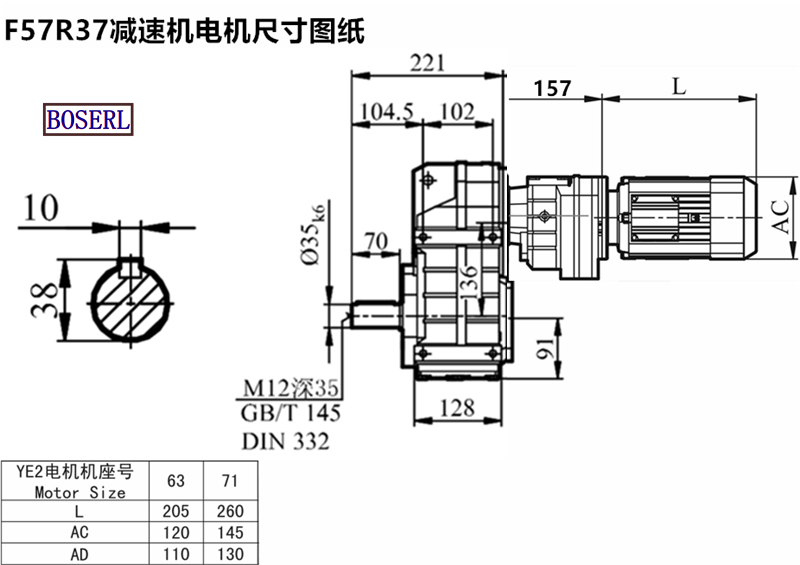

F57rf37-y0. 18kw power driveInstall size drawings
F57rf37-y0. 18kw power driveThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
