F77R37DM71MS4Detailed Information
Keywords: 18. 5 kw power sets with parallel axle gear brakes_ f77r37dm71ms4_f77r37dre80s4
F77R37DM71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F77R37DM71MS4 | 1053 | 0.25KW | 1.20r/min | 1740N.m | 108.5kg | 13900N | 0.85 |
| F77R37DM71MS4 | 910 | 0.25KW | 1.40r/min | 1490N.m | 108.5kg | 15700N | 1.00 |
| F77R37DM71MS4 | 810 | 0.25KW | 1.60r/min | 1290N.m | 108.5kg | 16900N | 1.15 |
| F77R37DM71MS4 | 710 | 0.25KW | 1.80r/min | 1130N.m | 108.5kg | 17700N | 1.30 |
| F77R37DM71MS4 | 615 | 0.25KW | 2.10r/min | 1000N.m | 108.5kg | 18300N | 1.50 |
| F77R37DM71MS4 | 538 | 0.25KW | 2.40r/min | 870N.m | 108.5kg | 18700N | 1.70 |
| F77R37DM71MS4 | 480 | 0.25KW | 2.70r/min | 775N.m | 108.5kg | 19000N | 1.95 |
| F77R37DM71MS4 | 413 | 0.25KW | 3.20r/min | 660N.m | 108.5kg | 19400N | 2.30 |
F77r37dre80s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F77R37DRE80S4 | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| F77R37DRE80S4 | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| F77R37DRE80S4 | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| F77R37DRE80S4 | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |
F77r37dm71ms4 deviation motorType:
F77r37dm71ms4 bottom foot installation parallel axes - tilt gearGearboc
Fa77br37dm71ms4 foot hollow axis installed parallel axle-slash gear brakes
Fv77br37dm71ms4 sky axes parallel axes - tilt gear deviators
Fa77r37dm71ms4 sky axes installation of parallel axes - tilt gear detachors
Fv77r37dm71ms4 sky axis installation of parallel axes - tilt gear deviators
Faf77r37dm71ms4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf77r37dm71ms4 is a parallel axle-slash gear-reducing machine for the b5 franberry cardiac axis
Faz77r37dm71ms4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz77r37dm71ms4 is a parallel axle for b14 flannel axle-slasher
Ff77r37dm71ms4 is a parallel axle for b5-slash gear reduction
Fh77br37dm71ms4 foot hollow axle locks with parallel axle-slasher
Fh77r37dm71ms4 is a parallel axle-slash-slasher for an empty axle lock
Fhf77r37dm71ms4 is the parallel axle for the b5 axle lock plate-slasher
Fhz77r37dm71ms4 is a parallel axle-slash-slasher for b14 aerocentric lockboards

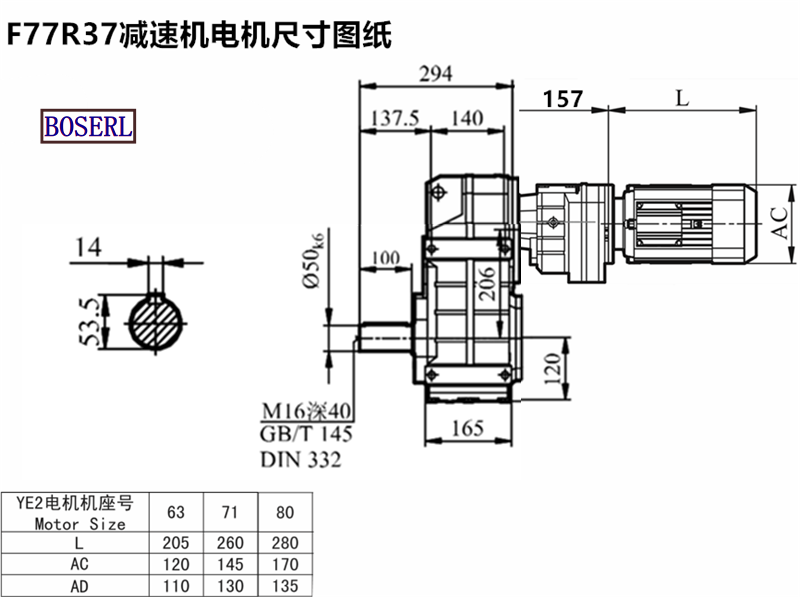

F77r37dm71ms4 deviation motorInstall size drawings
F77r37dm71ms4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
