FF67R37DT71MS4Detailed Information
Keywords: 132 kw electric power with parallel axle gear reduction power _ ff67r37dt71ms4_ff67r37dre63s4
FF67R37DT71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DT71MS4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FF67R37DT71MS4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FF67R37DT71MS4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FF67R37DT71MS4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FF67R37DT71MS4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FF67R37DT71MS4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FF67R37DT71MS4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FF67R37DT71MS4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FF67R37DT71MS4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FF67R37DT71MS4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Fff67r37dre63s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DRE63S4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FF67R37DRE63S4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FF67R37DRE63S4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FF67R37DRE63S4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FF67R37DRE63S4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FF67R37DRE63S4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FF67R37DRE63S4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FF67R37DRE63S4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FF67R37DRE63S4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FF67R37DRE63S4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Ff67r37dt71ms4 deviation motorType:
F67r37dt71ms4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dt71ms4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dt71ms4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dt71ms4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dt71ms4 sky axes installation of parallel axes - tilt-truck deviators
Faf67r37dt71ms4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dt71ms4 is a parallel axle-slash gear-reducing machine for b5-francocardia
Faz67r37dt71ms4 is a parallel axle for b14-slash gear brakes
Fvz67r37dt71ms4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dt71ms4 is a parallel to the b5-slash gear reduction machine
Fh67br37dt71ms4 foot hollow axle locks with parallel axes-slash gears reduction machines
Fh67r37dt71ms4 is a parallel axle-slash-slasher for the empty axle lock
Fhf67r37dt71ms4 is the parallel axle for the b5 axle lock, a slasher
Fhz67r37dt71ms4 is a parallel axle-slasher for the b14 axle lock

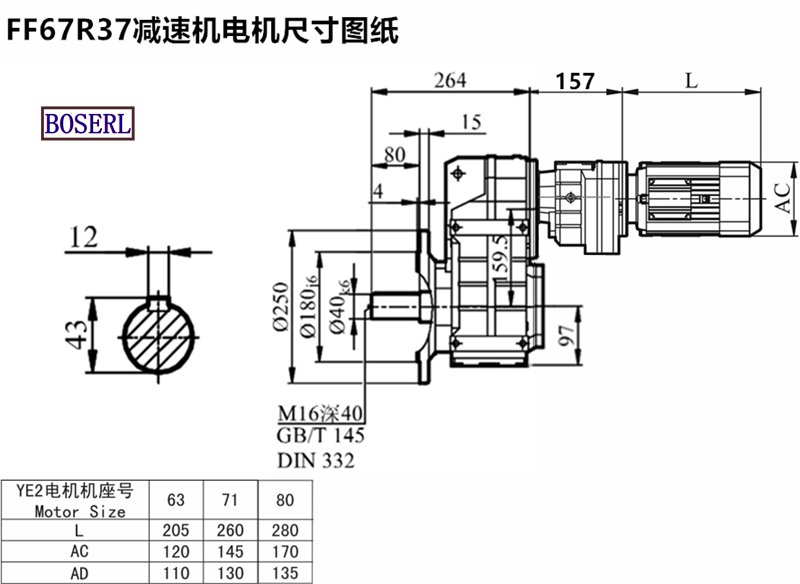

Ff67r37dt71ms4 deviation motorInstall size drawings
Ff67r37dt71ms4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
