F97 reducer motorDetailed Information
Keyword: F97 reducer motor_f97y200m4_f97y1.1kw_f97 reduction machine
F97Y200M4 Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F97Y200M4 | 22.11 | 30KW | 67.0rpm | 4290N.m | 513kg | 15100N | 1.00 |
| F97Y200M4 | 20.07 | 30KW | 74.0rpm | 3890N.m | 513kg | 15500N | 1.10 |
| F97Y200M4 | 17.25 | 30KW | 86.0rpm | 3350N.m | 513kg | 16000N | 1.30 |
| F97Y200M4 | 15.06 | 30KW | 98.0rpm | 2920N.m | 513kg | 16300N | 1.45 |
| F97Y200M4 | 12.77 | 30KW | 116rpm | 2480N.m | 513kg | 16400N | 1.75 |
| F97Y200M4 | 11.16 | 30KW | 132rpm | 2160N.m | 513kg | 16400N | 1.90 |
| F97Y200M4 | 9.06 | 30KW | 163rpm | 1760N.m | 513kg | 15400N | 1.35 |
| F97Y200M4 | 8.22 | 30KW | 179rpm | 1590N.m | 513kg | 15300N | 1.50 |
| F97Y200M4 | 7.07 | 30KW | 209rpm | 1370N.m | 513kg | 15100N | 1.70 |
| F97Y200M4 | 6.17 | 30KW | 239rpm | 1190N.m | 513kg | 14900N | 1.90 |
| F97Y200M4 | 5.23 | 30KW | 282rpm | 1010N.m | 513kg | 14600N | 2.10 |
| F97Y200M4 | 4.57 | 30KW | 322rpm | 880N.m | 513kg | 14300N | 2.30 |
F97Y1.1KW reducer motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| F97Y1.1KW | 276.77 | 1.1KW | 5.10rpm | 2040N.m | 280kg | 35300N | 2.10 |
| F97Y1.1KW | 253.41 | 1.1KW | 5.60rpm | 1870N.m | 280kg | 35600N | 2.30 |
| F97Y1.1KW | 223.88 | 1.1KW | 6.30rpm | 1650N.m | 280kg | 36000N | 2.60 |

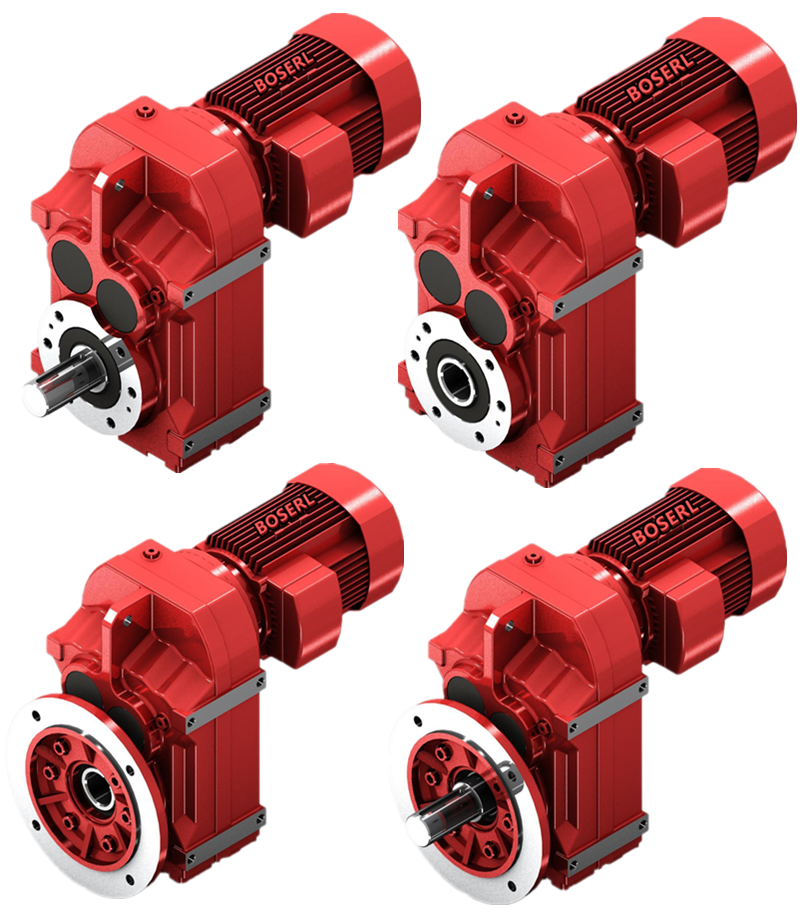

F97 reducer motor Type:
F..Foot-mounted parallel shaft helical geared units Gearboc
FA..BFoot-mounted parallel shaft helical geared units.
FV..BFoot-mounted parallel shaft helical geared motor with splinedhollow shaft to DIN5480.
FA..Parallel shaft helical geared units with hollow shaft.
FV.Parallel shaft helical geared units with splined hollow shaftto DIN5480.
FAF.Parallel shaft helical geared units in B5 flangemounted versionwith hollow shaft.
FVF..Paeallel shaft helical geared units in B5 flange-mounted versionwith splined hollow shaft to DIN5480.
FAZ.Parallel shaft helical geared units in B14 flange-mounted versionwith hollow shaft.
FVZ..Parallel sfaft helical geared units in Bl4 flange-mounted wersionwith splined hollow shaft to DIN5480.
FF..Parallel shaft helical geared units in B5 flange-mounted version.
FH..B Foot-mounted parallel shaft helical geared units with hollowshaft and shrink disk.
FHParallel shaft helical geared units with hollow shaft and shrink disk.
FHF..Parallel shaft helical geared units in B5 flange-mountedversion with hollow shaft and shrink disk.
FHZ.Parallel shaft helical geared units in Bl4 flange-mountedwith hollow shaft and shrink disk.
F.. Y..Input with geared motors.
F..AM..Input with AM adapters for mounting lEC motors.
F..AD..Input with AD shaft assembly.

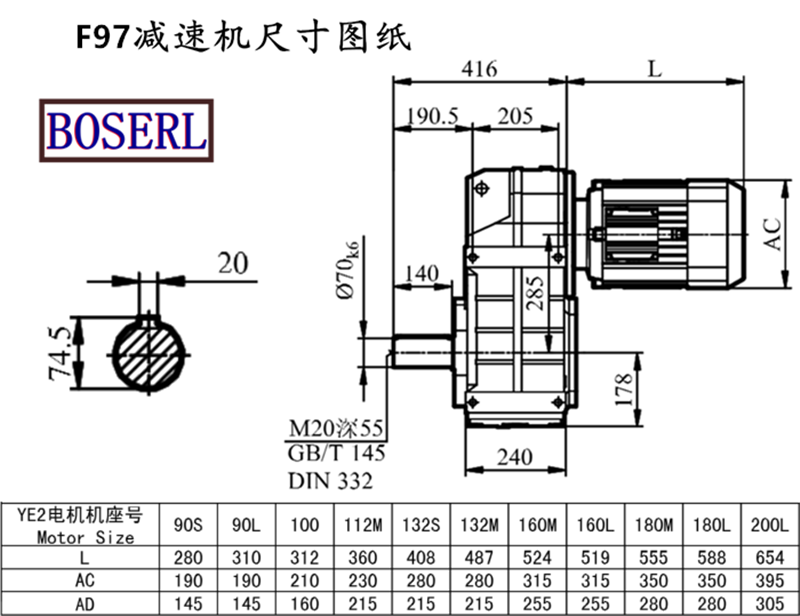

F97 reducer motor size drawings
F97 reducer motor production factory display: please make an appointment three days in advance to visit the factory Induction motor
Induction motor,Reducer complete assembly,Electric motors Gearboc
F37 gear reducer, F47 gear reducer, F67 gear reducer, F77 gear reducer, F87 gear reducer, F97 gear reducer, F107 Gear Reducer, F127 Gear Reducer, F157 Geared motor
F Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
