Fa 107 gear speed reduction motorDetailed Information
Keyword: fa107 gear deviator motor_fa107y3kw_fa107y4kw_fa107 gear deviator_fa107 gang deviator manufacturer_fa107 gang deviator manufacturer
FA107Y3KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107Y3KW | 254.40 | 3KW | 5.70rpm | 5000N.m | 437kg | 56300N | 1.55 |
| FA107Y3KW | 215.37 | 3KW | 6.80rpm | 4240N.m | 437kg | 57900N | 1.80 |
| FA107Y3KW | 199.31 | 3KW | 7.30rpm | 3920N.m | 437kg | 58600N | 1.95 |
| FA107Y3KW | 178.64 | 3KW | 8.10rpm | 3510N.m | 437kg | 59400N | 2.20 |
| FA107Y3KW | 161.28 | 3KW | 9.00rpm | 3170N.m | 437kg | 60100N | 2.40 |
Fa107y4kw reduction engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107Y4KW | 254.40 | 4KW | 5.70rpm | 6650N.m | 448kg | 52400N | 1.15 |
| FA107Y4KW | 215.37 | 4KW | 6.80rpm | 5630N.m | 448kg | 54900N | 1.35 |
| FA107Y4KW | 199.31 | 4KW | 7.30rpm | 5210N.m | 448kg | 55800N | 1.45 |
| FA107Y4KW | 178.64 | 4KW | 8.20rpm | 4670N.m | 448kg | 57000N | 1.65 |
| FA107Y4KW | 161.28 | 4KW | 9.00rpm | 4210N.m | 448kg | 58000N | 1.80 |
| FA107Y4KW | 146.49 | 4KW | 10.0rpm | 3830N.m | 448kg | 58800N | 2.00 |
| FA107Y4KW | 129.97 | 4KW | 11.0rpm | 3400N.m | 448kg | 59600N | 2.30 |
| FA107Y4KW | 117.94 | 4KW | 12.0rpm | 3080N.m | 448kg | 60200N | 2.50 |
Fa 107 gear reduction motor Type:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

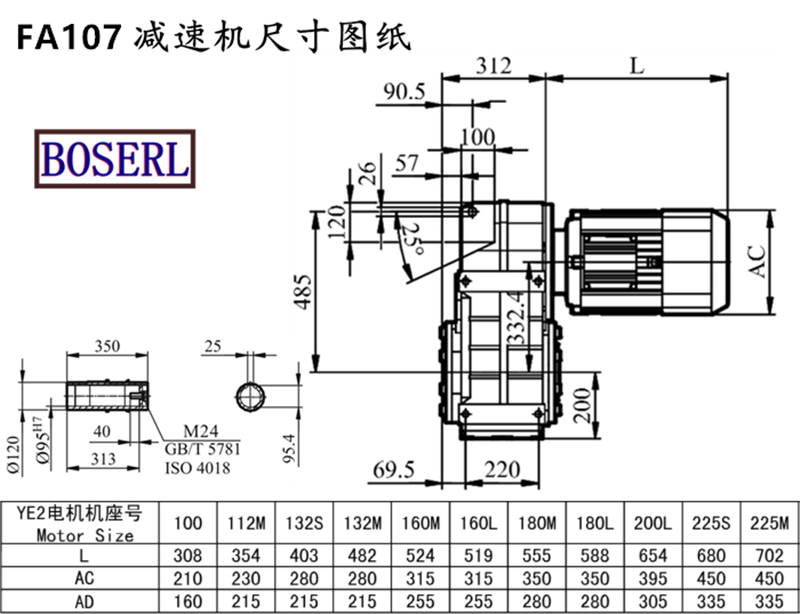

Fa 107 gear reduction motor Install size drawings
Fa 107 gear reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
