FA107R77DM63L4Detailed Information
Keywords: 15kw adapts to a parallel axle tilt gear reduction box_fa107r77dm63l4_fa107r77drrs90l4
FA107R77DM63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107R77DM63L4 | 8548 | 0.18KW | 0.15r/min | 8440N.m | 444kg | 47700N | 0.90 |
| FA107R77DM63L4 | 7674 | 0.18KW | 0.17r/min | 8130N.m | 444kg | 48600N | 0.95 |
| FA107R77DM63L4 | 6767 | 0.18KW | 0.20r/min | 7070N.m | 444kg | 51400N | 1.10 |
| FA107R77DM63L4 | 5954 | 0.18KW | 0.22r/min | 6080N.m | 444kg | 53800N | 1.25 |
| FA107R77DM63L4 | 5223 | 0.18KW | 0.25r/min | 5290N.m | 444kg | 55700N | 1.45 |
| FA107R77DM63L4 | 4567 | 0.18KW | 0.29r/min | 4850N.m | 444kg | 56600N | 1.60 |
| FA107R77DM63L4 | 3521 | 0.18KW | 0.37r/min | 3670N.m | 444kg | 59100N | 2.10 |
| FA107R77DM63L4 | 3037 | 0.18KW | 0.43r/min | 3250N.m | 444kg | 59900N | 2.40 |
| FA107R77DM63L4 | 2756 | 0.18KW | 0.48r/min | 2950N.m | 444kg | 60500N | 2.60 |
| FA107R77DM63L4 | 2369 | 0.18KW | 0.56r/min | 2540N.m | 444kg | 61200N | 3.00 |
| FA107R77DM63L4 | 2068 | 0.18KW | 0.64r/min | 2210N.m | 444kg | 61800N | 3.50 |
Fa107r77drrs90l4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107R77DRS90L4 | 950 | 1.5KW | 1.50r/min | 8720N.m | 461kg | 46900N | 0.90 |
| FA107R77DRS90L4 | 834 | 1.5KW | 1.70r/min | 7630N.m | 461kg | 49900N | 1.00 |
| FA107R77DRS90L4 | 736 | 1.5KW | 1.90r/min | 6710N.m | 461kg | 52300N | 1.15 |
| FA107R77DRS90L4 | 640 | 1.5KW | 2.20r/min | 5890N.m | 461kg | 54300N | 1.30 |
| FA107R77DRS90L4 | 560 | 1.5KW | 2.60r/min | 5090N.m | 461kg | 56100N | 1.50 |
| FA107R77DRS90L4 | 489 | 1.5KW | 2.90r/min | 4440N.m | 461kg | 57500N | 1.75 |
| FA107R77DRS90L4 | 436 | 1.5KW | 3.30r/min | 4010N.m | 461kg | 58400N | 1.90 |
| FA107R77DRS90L4 | 370 | 1.5KW | 3.90r/min | 3400N.m | 461kg | 59600N | 2.30 |
Fa107r77dm63l4 reduction motor Type:
F107r77dm63l4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dm63l4 foot hollow axis installed parallel axle-slash gear brake
Fv107br77dm63l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dm63l4 sky axes installation of parallel axes-slash gear deviators
Fv107r77dm63l4 installation of parallel axes - tilt-trinkler
Faf107r77dm63l4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf107r77dm63l4 is the parallel axle of b5 francocardial axle-slasher
Faz107r77dm63l4 is a parallel axle for b14-slash gear reduction
Fvz107r77dm63l4 is a parallel axle of the b14-franco-axes-slash-slash-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steed-steed-steed-steed-steed-steed-steed-stell-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steward-steed-steed-sted-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-s
Ff107r77dm63l4 is a parallel to the b5-slash gear reduction machine
Fh107br77dm63l4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh107r77dm63l4 is a parallel axle-slash-slash gear-discharger
Fhf107r77dm63l4 is the parallel axle of the b5 axle lock, the slasher
Fhz107r77dm63l4 is the parallel axle of the b14 axle lock plate-slasher

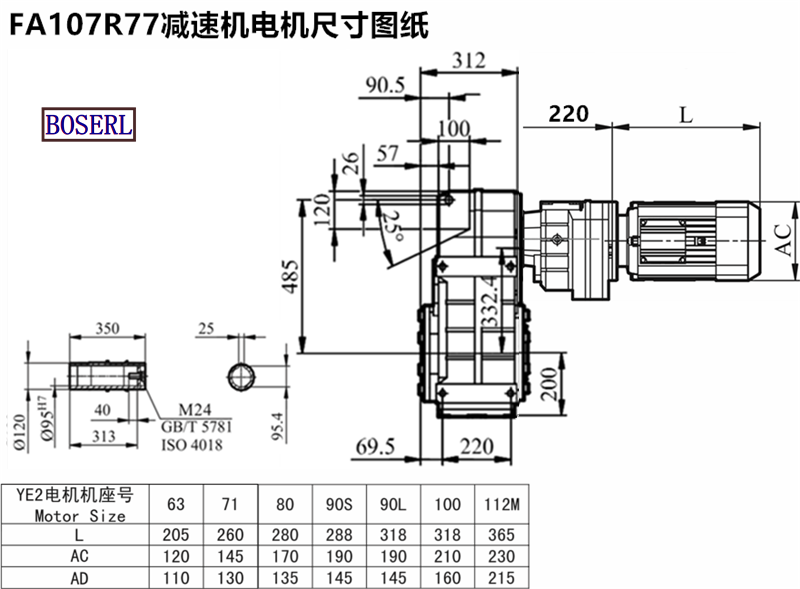

Fa107r77dm63l4 reduction motor Install size drawings
Fa107r77dm63l4 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 15kw axle tilt gear reduction box fa107r77dm63l4ffa107r77drs90l4
