FA107R77DT80K4Detailed Information
Keywords: 22kw adapts to parallel axle tilt gear reduction box_fa107r77dt80k4_fa107r77dre63ms4
FA107R77DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107R77DT80K4 | 2369 | 0.55KW | 0.58r/min | 8120N.m | 453kg | 48600N | 0.95 |
| FA107R77DT80K4 | 2068 | 0.55KW | 0.67r/min | 7090N.m | 453kg | 51400N | 1.10 |
| FA107R77DT80K4 | 1826 | 0.55KW | 0.76r/min | 6090N.m | 453kg | 53800N | 1.25 |
| FA107R77DT80K4 | 1597 | 0.55KW | 0.86r/min | 5450N.m | 453kg | 55300N | 1.40 |
| FA107R77DT80K4 | 1401 | 0.55KW | 0.98r/min | 4750N.m | 453kg | 56900N | 1.60 |
| FA107R77DT80K4 | 1243 | 0.55KW | 1.10r/min | 4140N.m | 453kg | 58100N | 1.85 |
| FA107R77DT80K4 | 1087 | 0.55KW | 1.30r/min | 3710N.m | 453kg | 59000N | 2.10 |
| FA107R77DT80K4 | 950 | 0.55KW | 1.40r/min | 3170N.m | 453kg | 60100N | 2.40 |
| FA107R77DT80K4 | 834 | 0.55KW | 1.70r/min | 2750N.m | 453kg | 60800N | 2.80 |
| FA107R77DT80K4 | 640 | 0.55KW | 2.20r/min | 2140N.m | 453kg | 61900N | 3.60 |
Fa107r77dre63ms4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA107R77DRE63MS4 | 14767 | 0.12KW | 0.10r/min | 8850N.m | 443.5kg | 65000N | 0.90 |
| FA107R77DRE63MS4 | 11348 | 0.12KW | 0.11r/min | 7550N.m | 443.5kg | 65000N | 1.05 |
| FA107R77DRE63MS4 | 10039 | 0.12KW | 0.13r/min | 6600N.m | 443.5kg | 65000N | 1.20 |
| FA107R77DRE63MS4 | 8548 | 0.12KW | 0.14r/min | 5890N.m | 443.5kg | 65000N | 1.35 |
| FA107R77DRE63MS4 | 7674 | 0.12KW | 0.17r/min | 5150N.m | 443.5kg | 65000N | 1.55 |
| FA107R77DRE63MS4 | 6767 | 0.12KW | 0.19r/min | 4490N.m | 443.5kg | 65000N | 1.80 |
| FA107R77DRE63MS4 | 5954 | 0.12KW | 0.22r/min | 3700N.m | 443.5kg | 65000N | 2.20 |
| FA107R77DRE63MS4 | 5223 | 0.12KW | 0.24r/min | 3210N.m | 443.5kg | 65000N | 2.50 |
| FA107R77DRE63MS4 | 4567 | 0.12KW | 0.27r/min | 2910N.m | 443.5kg | 65000N | 2.70 |
| FA107R77DRE63MS4 | 3521 | 0.12KW | 0.32r/min | 2670N.m | 443.5kg | 65000N | 3.00 |
Fa107r77dt80k4 deviation engineType:
F107r77dt80k4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dt80k bottom foot hollow axis installed parallel axle-slash gear brake
Fv107br77dt80k4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dt80k4 sky axis installation parallel axle-slash gear reduction machine
Fv107r77dt80k4 sky axis installation of parallel axes - tilt gear deviators
Faf107r77dt80k4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf107r77dt80k4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz107r77dt80k4 is a parallel axle for b14 flannels - a slasher
Fvz107r77dt80k4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff107r77dt80k4 is a parallel to the b5-slash gear reduction machine
Fh107br77dt80k bottom foot axle lock, parallel axle-slasher
Fh107r77dt80k4 is a parallel axle for an empty axle lock
Fhf107r77dt80k4 is a parallel axle of b5-carriage locker-slasher-slasher
Fhz107r77dt80k4 is a parallel axle for the b14 axle lock, a slasher

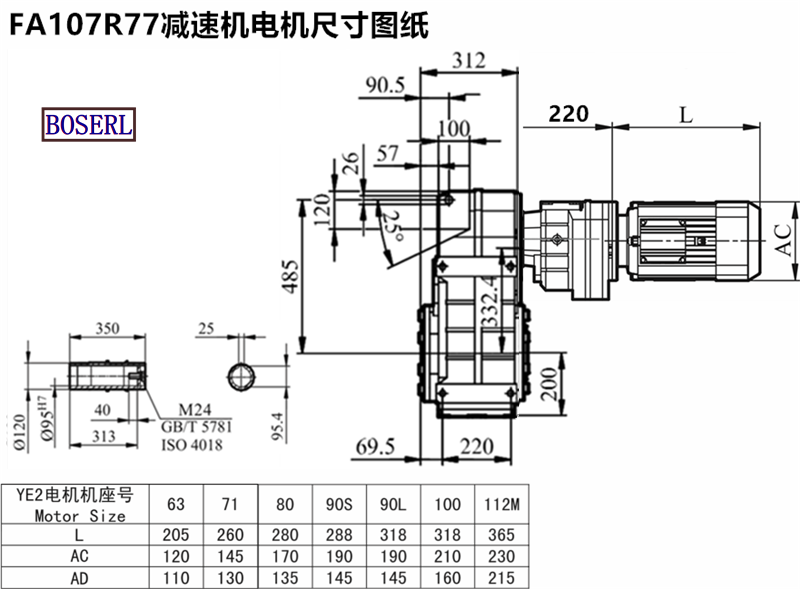

Fa107r77dt80k4 deviation engineInstall size drawings
Fa107r77dt80k4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
