Fa127 power-mobilized brakesDetailed Information

Fa127 power-mobilized brakes
prevnext

Fa127 power-mobilized brakes

TEL：Email:[email protected]
  1. 详细信息

Keyword: fa127 emp_fa127y200m4_fa127y225m4_fa127 emp_fa127 epm manufacturer_fa127 emp

FA127Y200M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA127Y200M475.4130KW20.0rpm14600N.m953kg64500N0.80
FA127Y200M470.0730KW21.0rpm13600N.m953kg65700N0.90
FA127Y200M463.9130KW23.0rpm12400N.m953kg66800N0.95
FA127Y200M455.3130KW27.0rpm10700N.m953kg66700N1.10
FA127Y200M448.8030KW30.0rpm9470N.m953kg66300N1.25
FA127Y200M442.1530KW35.0rpm8180N.m953kg65500N1.45
FA127Y200M437.2830KW40.0rpm7240N.m953kg64700N1.65
FA127Y200M426.8630KW55.0rpm5210N.m953kg61800N1.65
FA127Y200M424.5730KW60.0rpm4770N.m953kg60800N1.80
FA127Y200M431.3330KW47.0rpm6080N.m953kg63200N1.95
FA127Y200M425.3030KW58.0rpm4910N.m953kg61100N2.40
FA127Y200M421.3830KW69.0rpm4150N.m953kg59300N2.90
FA127Y200M418.8730KW78.0rpm3660N.m953kg57900N3.00

Fa127y225m4reducing engine parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA127Y225M448.8045KW30.0rpm14100N.m1035kg51600N0.85
FA127Y225M442.1545KW35.0rpm12200N.m1035kg54300N1.00
FA127Y225M437.2845KW40.0rpm10800N.m1035kg55800N1.10
FA127Y225M426.8645KW55.0rpm7810N.m1035kg55700N1.10
FA127Y225M424.5745KW60.0rpm7140N.m1035kg55300N1.20
FA127Y225M431.3345KW47.0rpm9100N.m1035kg56100N
1.30
FA127Y225M425.3045KW58.0rpm7350N.m1035kg55400N1.65
FA127Y225M421.3845KW69.0rpm6210N.m1035kg54500N1.95
FA127Y225M418.8745KW78.0rpm5480N.m1035kg53600N2.00
FA127Y225M416.3645KW90.0rpm4750N.m1035kg52600N2.30
FA127Y225M414.5545KW102rpm4230N.m1035kg51600N2.60
FA127Y225M412.5445KW118rpm3640N.m1035kg50300N2.70
FA127Y225M410.1945KW145rpm2960N.m1035kg48300N3.20
FA127Y225M48.8645KW167rpm2570N.m1035kg46500N2.70
FA127Y225M47.8845KW187rpm2290N.m1035kg45400N2.60
FA127Y225M46.8045KW218rpm1970N.m1035kg44000N3.50
FA127Y225M45.5245KW268rpm1600N.m1035kg42000N3.70

Fa127 power-mobilized brakesType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

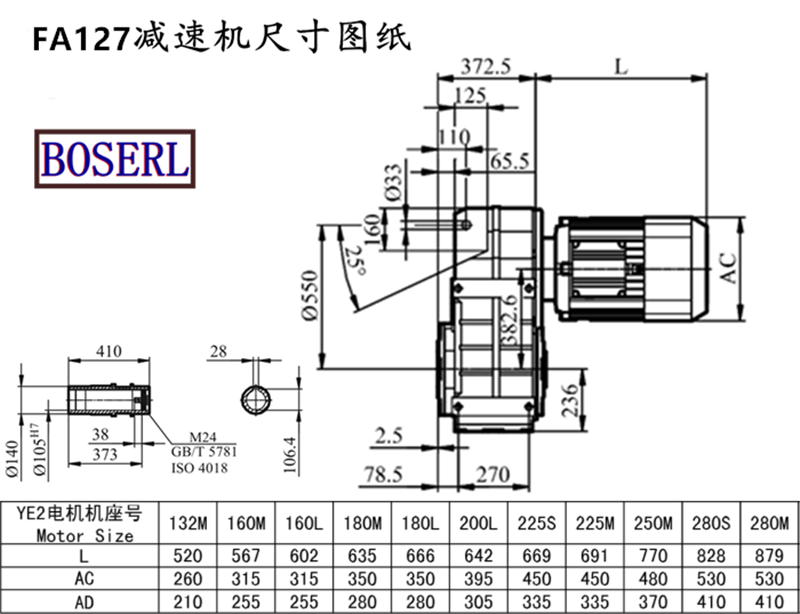

Fa127 power-mobilized brakesInstall size drawings



Fa127 power-mobilized brakesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
