Fa127 speed reduction motorDetailed Information
Keyword: fa127 deviator electric motor_fa127y7. 5kw_fa127y11kw_fa127 deviator_fa127 deviator producer_fa127 deviator
FA127Y7.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127Y7.5KW | 170.83 | 7.5KW | 8.60rpm | 8320N.m | 773kg | 90000N | 1.45 |
| FA127Y7.5KW | 153.67 | 7.5KW | 9.60rpm | 7480N.m | 773kg | 90000N | 1.60 |
| FA127Y7.5KW | 125.37 | 7.5KW | 12.0rpm | 6100N.m | 773kg | 90000N | 1.95 |
Fa127y11kw reduction engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127Y11KW | 170.83 | 11KW | 8.60rpm | 12100N.m | 815kg | 90000N | 1.00 |
| FA127Y11KW | 153.67 | 11KW | 9.60rpm | 10900N.m | 815kg | 90000N | 1.10 |
| FA127Y11KW | 125.37 | 11KW | 12.0rpm | 8920N.m | 815kg | 90000N | 1.35 |
| FA127Y11KW | 114.34 | 11KW | 13.0rpm | 8140N.m | 815kg | 90000N | 1.45 |
| FA127Y11KW | 98.95 | 11KW | 15.0rpm | 7040N.m | 815kg | 90000N | 1.70 |
| FA127Y11KW | 87.31 | 11KW | 17.0rpm | 6210N.m | 815kg | 90000N | 1.95 |
| FA127Y11KW | 75.41 | 11KW | 20.0rpm | 5370N.m | 815kg | 88200N | 2.20 |
Fa127 reduction motor Type:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

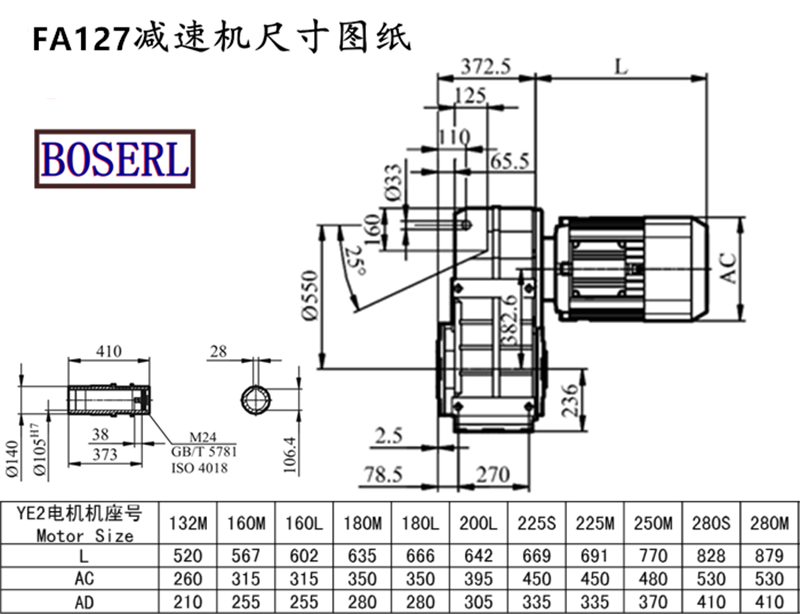

Fa127 reduction motor Install size drawings
Fa127 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Fa127 deviation motor fa127y7. 5 kw fa127y11kw fa127 deviation machine fa127 production plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127减速机电动机样本 |
|
| FA127减速机电动机三维图纸 |
|
