FA127R87DM132ML4Detailed Information
Keyword: 0. 25kw electric power with a parallel axle gear-reducing power _ fa127r87dm132ml4_fa127r87drs160s4
FA127R87DM132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DM132ML4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DM132ML4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DM132ML4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DM132ML4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DM132ML4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87drrs160s4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRS160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DRS160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DRS160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127r87dm132ml4 deviation engineType:
F127r87dm132ml4 bottom foot installation parallel axes - tilt gearsGearboc
Fa127 br87dm132 ml4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dm132ml4 bottom feet sky axis installation of parallel axes - tilt gear deviators
Fa127r87dm132ml4 sky axis installation parallel axle-slash gear brakes
Fv127r87dm132ml4 sky axis installation of parallel axes - tilt-truck deviators
Faf127r87dm132ml4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dm132ml4 is a parallel axle-slash-pattern reduction machine for b5 flannel cores
Faz127r87dm132ml4 is a parallel axle for b14-slash gear reduction
Fvz127r87dm132ml4 is a parallel axle for b14 flannel axle-slash gear-reducing machine
Ff127r87dm132ml4 is a parallel to the b5-slash gear brake
Fh127 br87dm132ml4 foot hollow axle locks to install parallel axles - slash gears to slow down
Fh127r87dm132ml4 is a parallel axle-slash-slasher for the empty axle lock
Fhf127r87dm132ml4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dm132ml4 is the parallel axle of the b14 aerocentric lockboard-slasher-slasher

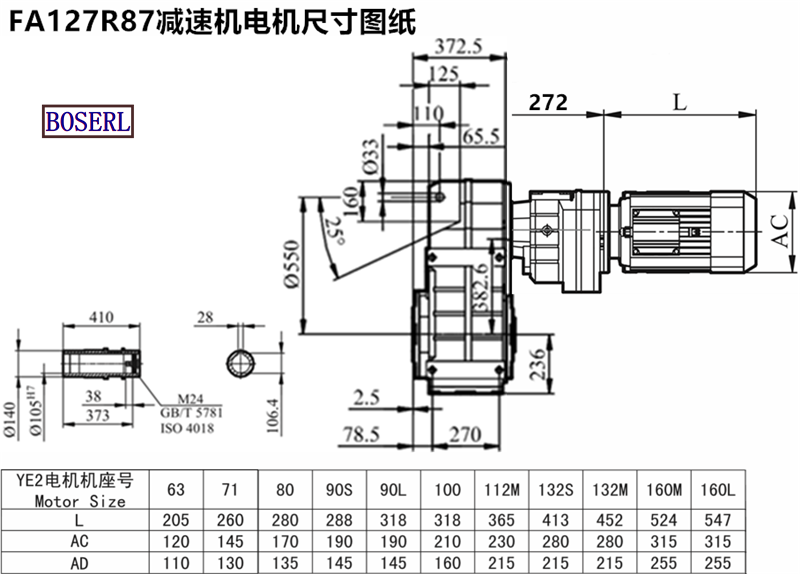

Fa127r87dm132ml4 deviation engineInstall size drawings
Fa127r87dm132ml4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
