FA127R87DM160L4Detailed Information
Keyword: the size of the 3kw power is a parallel axle decelerator_fa127r87dm160l4_fa127r87drrs132ml4
FA127R87DM160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DM160L4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DM160L4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DM160L4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127r87drrs132ml4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRS132ML4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DRS132ML4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DRS132ML4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DRS132ML4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DRS132ML4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87dm160l4 motor for reduction machinesType:
F127r87dm160l4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dm160l4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dm160l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dm160l4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dm160l4 installation of parallel axes-slash gear reduction machines
Faf127r87dm160l4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dm160l4 is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r87dm160l4 is a parallel axle of b14 installed in flange - a slasher
Fvz127r87dm160l4 is a parallel axle of the b14 flannel cavity axle-slasher
Ff127r87dm160l4 is a parallel axle for b5-slash gear brakes
Fh127 br87dm160l4 foot hollow axle locks with parallel axles-slash gear-reducing machines
Fh127r87dm160l4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dm160l4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dm160l4 is the parallel axle of the b14 axle lock, the slasher

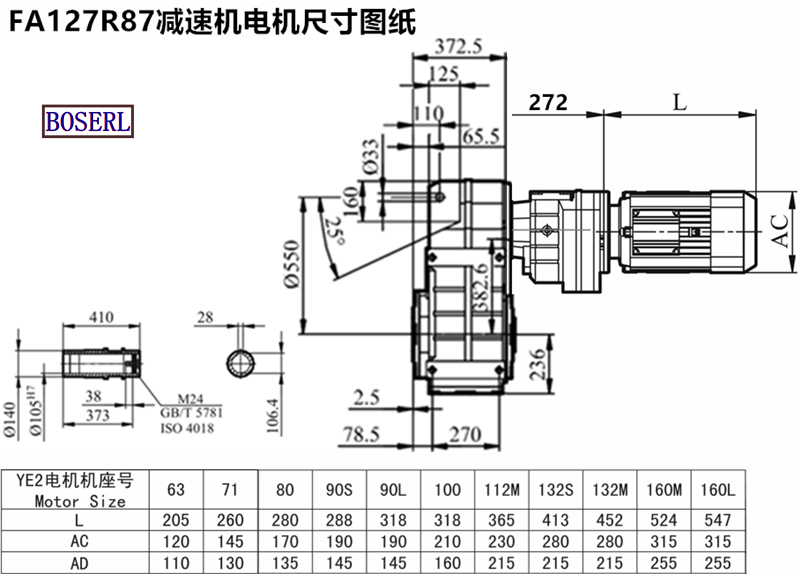

Fa127r87dm160l4 motor for reduction machinesInstall size drawings
Fa127r87dm160l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 3kw power, how big is the parallel axle decelerator fa127r87dm160l4ffa127r87drrs132ml4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127R87DM160L4减速机样本 |
|
| FA127R87DM160L4减速机三维图纸 |
|
