FA127R87DT132L4Detailed Information
Keyword: how big a parallel axle decelerator with 30kw power is _fa127r87dt132l4_fa127r87dr132mc4
FA127R87DT132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DT132L4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DT132L4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DT132L4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DT132L4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DT132L4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87dre132mc4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRE132MC4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DRE132MC4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DRE132MC4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DRE132MC4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DRE132MC4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87dt132l4 motor for reduction machinesType:
F127r87dt132l4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dt132l4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dt132l4 bottom feet axis installation of parallel axes - tilt-trittle deviators
Fa127r87dt132l4 sky axis installation parallel axle-slash gear brake
Fv127r87dt132l4 sky axis installation of parallel axes - tied gear deviators
Faf127r87dt132l4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dt132l4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz127r87dt132l4 is a parallel axle for b14-slash gear brakes
Fvz127r87dt132l4 is a parallel axle for the b14 flannel axle-slasher
Ff127r87dt132l4 is a parallel axle of b5-slash gear reduction
Fh127 br87dt132l4 foot hollow axle locks, parallel axle-slasher
Fh127r87dt132l4 is a parallel axle-sweet gear-reducing machine installed on an empty axle lock
Fhf127r87dt132l4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dt132l4 is the parallel axle of the b14 axle lock plate-slasher-slasher

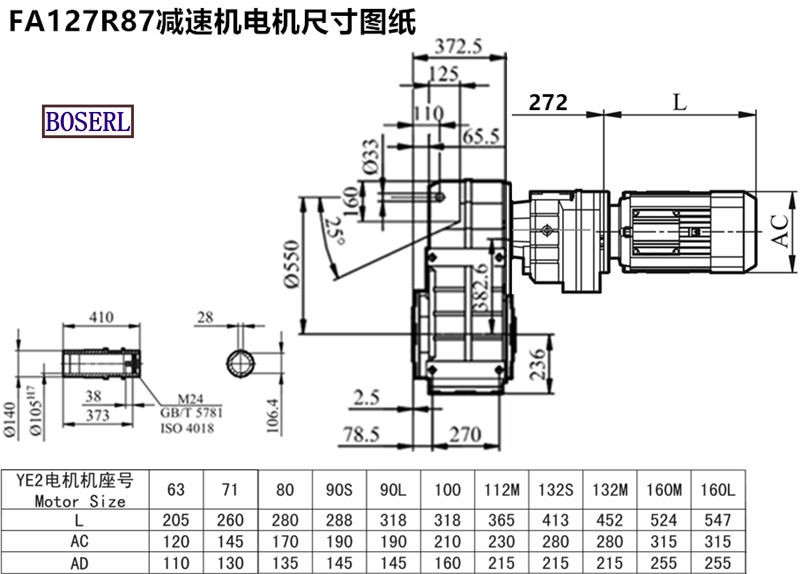

Fa127r87dt132l4 motor for reduction machinesInstall size drawings
Fa127r87dt132l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 30kw power size parallel axle speed reduction engine fa127r87dt132l4 fa127r87dr132mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127R87DT132L4减速机样本 |
|
| FA127R87DT132L4减速机三维图纸 |
|
