FA127R87DT132MC4Detailed Information
Keyword: how big a parallel axle decelerator is 45kw power _fa127r87dt132mc4_fa127r87dre160s4
FA127R87DT132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DT132MC4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DT132MC4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DT132MC4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DT132MC4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DT132MC4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87dre160s4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRE160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DRE160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DRE160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127r87dt132mc4 deviation electric motionType:
F127r87dt132mc4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dt132mc4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv127 br87dt132mc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dt132mc4 sky axes installation of parallel axes - tilt gear detachors
Fv127r87dt132mc4 sky axis installation of parallel axes - tilt-truck deviators
Faf127r87dt132mc4 is the parallel axle-slash gear reduction machine for b5 aerocentric axis
Fvf127r87dt132mc4 is a parallel axle-slash gear-reducing machine for the b5 francium axis
Faz127r87dt132mc4 is a parallel axle for b14-slash gear reduction
Fvz127r87dt132mc4 is a parallel axle-slash gear-reducing machine for the b14 flannel core
Ff127r87dt132mc4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dt132mc4 foot hollow axle locks, parallel axle-slash gear-reducing machine
Fh127r87dt132mc4 is a parallel axle-slash-slasher for the empty axle lock
Fhf127r87dt132mc4 is a parallel axle-slasher for the b5 axle lock
Fhz127r87dt132mc4 is the parallel axle of the b14 axle lock, which is a slasher

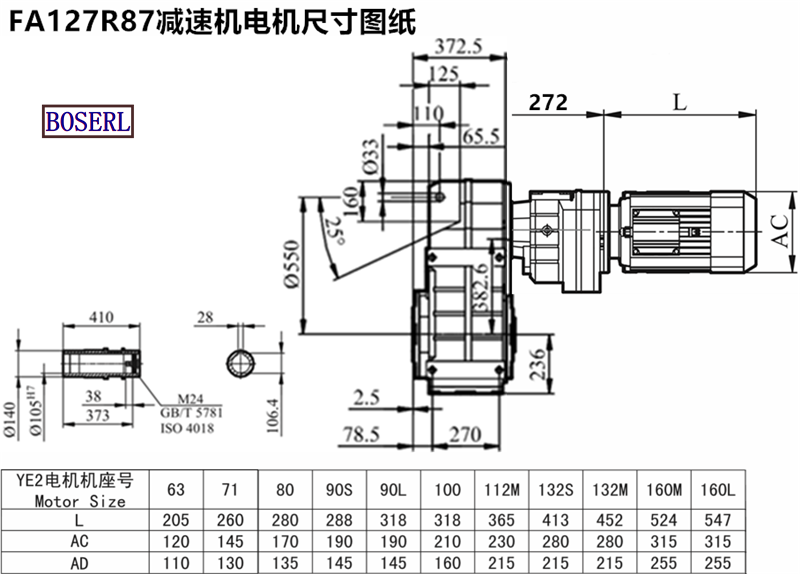

Fa127r87dt132mc4 deviation electric motionInstall size drawings
Fa127r87dt132mc4 deviation electric motionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: The size of the 45kw power plant with a parallel axle decelerator fa127r87dt132mc4 fa127r87dr160s4
