FA127R87DT132S4Detailed Information
Keyword: 0. 75 kw power with a parallel axle gear-reducing power _ fa127r87dt132s4_fa127r87dr160l4
FA127R87DT132S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DT132S4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FA127R87DT132S4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FA127R87DT132S4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FA127R87DT132S4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FA127R87DT132S4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FA127R87DT132S4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Fa127r87dre160l4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRE160L4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DRE160L4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DRE160L4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127 r87dt132s4 deviation electric motionType:
F127r87dt132s4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dt132s4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dt132s4 bottom feet sky axes installation of parallel axes - tilt gear detachors
Fa127r87dt132s4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dt132s4 sky axes installation of parallel axes - tilt-truck deviators
Faf127r87dt132s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dt132s4 is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r87dt132s4 is a parallel axle for b14-slash gear reduction
Fvz127r87dt132s4 is a parallel axle of the b14 flannel axle-slasher
Ff127r87dt132s4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dt132s4 foot hollow axle locks to install parallel axles-slash gears reduction machines
Fh127r87dt132s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dt132s4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dt132s4 is the parallel axle of the b14 axle lockboard-slasher-slasher

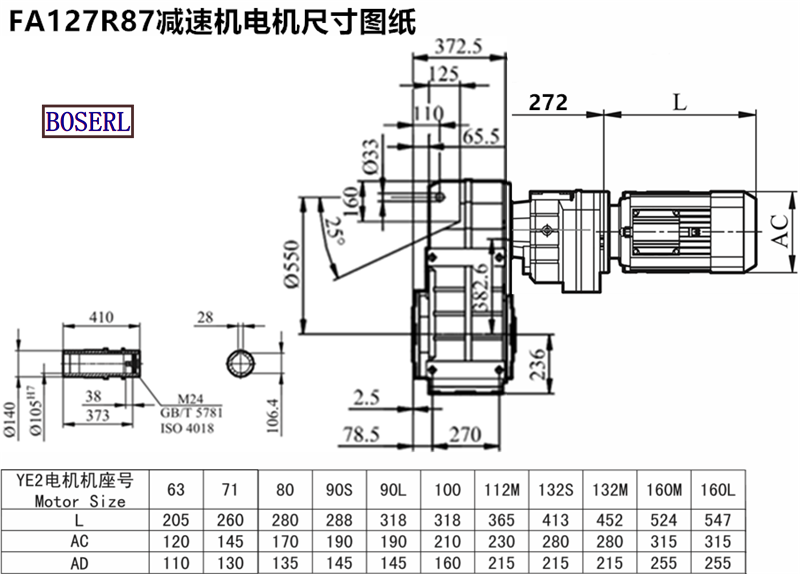

Fa127 r87dt132s4 deviation electric motionInstall size drawings
Fa127 r87dt132s4 deviation electric motionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 0. 75kw's power plant with a parallel axle gear reduction power fa127r87dt132s4ffa127r87dre160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127R87DT132S4减速机样本 |
|
| FA127R87DT132S4减速机三维图纸 |
|
