FA127R87DV132MC4Detailed Information
Keyword: how big a parallel axle-reducing machine with 160kw power is _fa127r87dv132mc4_fa127r87rn160mc4
FA127R87DV132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DV132MC4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DV132MC4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DV132MC4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DV132MC4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DV132MC4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87drn160mc4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRN160MC4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DRN160MC4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DRN160MC4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127r87dv132mc4 deviation motorType:
F127r87dv132mc4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dv132mc4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv127br87dv132mc4 bottom feet axis installation of parallel axes - tilt gear detachors
Fa127r87dv132mc4 sky axes installation of parallel axes - tilt gear detachors
Fv127r87dv132mc4 cascade axes installation of parallel axes - tilt gear detachors
Faf127r87dv132mc4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dv132mc4 is the parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz127r87dv132mc4 is a parallel axle of b14 installed in flange - a slasher
Fvz127r87dv132mc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r87dv132mc4 is a parallel axle for b5-slash gear brakes
Fh127 br87dv132mc4 foot hollow axle locks, parallel axle-slash-slash gear reduction machine
Fh127r87dv132mc4 is a parallel axle-sweet gear-reducing machine installed on an empty axle lock
Fhf127r87dv132mc4 is the parallel axle of the b5 axle lock, a slasher
Fhz127r87dv132mc4 is a parallel axle for the b14 axle lock-drive

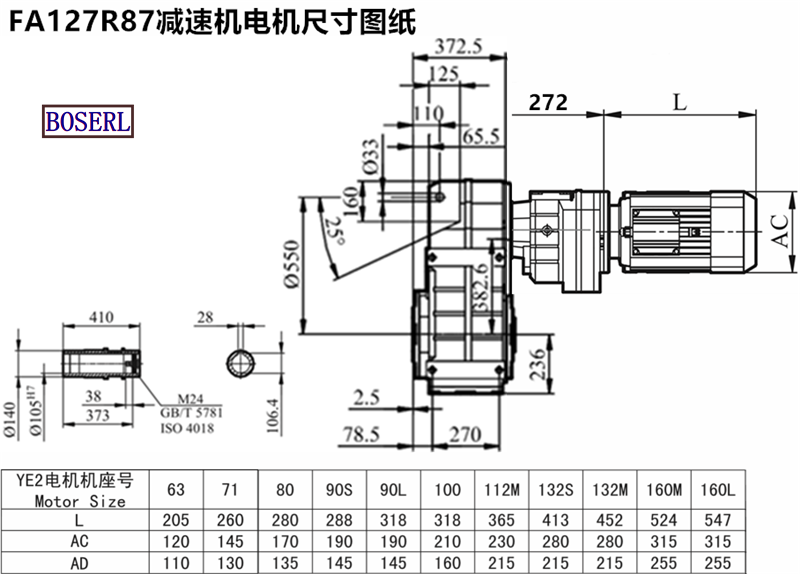

Fa127r87dv132mc4 deviation motorInstall size drawings
Fa127r87dv132mc4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: The size of the 160kw power plant with a parallel axle decelerator fa127r87dv132mc4ffa127r87rn160mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127R87DV132MC4减速机样本 |
|
| FA127R87DV132MC4减速机三维图纸 |
|
