FA127R87DV160S4Detailed Information
Keyword: how big the 55kw power is with the parallel axle decelerator_fa127r87dv160s4_fa127r87drrn132l4
FA127R87DV160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DV160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127R87DV160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127R87DV160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127r87drn132l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127R87DRN132L4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FA127R87DRN132L4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FA127R87DRN132L4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FA127R87DRN132L4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FA127R87DRN132L4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Fa127r87dv160s4 deviation engineType:
F127r87dv160s4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dv160s4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dv160s4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dv160s4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dv160s4 installing parallel axes-slash gear reduction machines
Faf127r87dv160s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dv160s4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz127r87dv160s4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz127r87dv160s4 is a parallel axle of b14 flannel cardiac axle-slasher
Ff127r87dv160s4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dv160s4 foot hollow axle locks with parallel axles-slash gears reduction machines
Fh127r87dv160s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dv160s4 is a parallel axle for the b5 axle lock, a slasher
Fhz127r87dv160s4 is a parallel axle for the b14 axle lock-drive

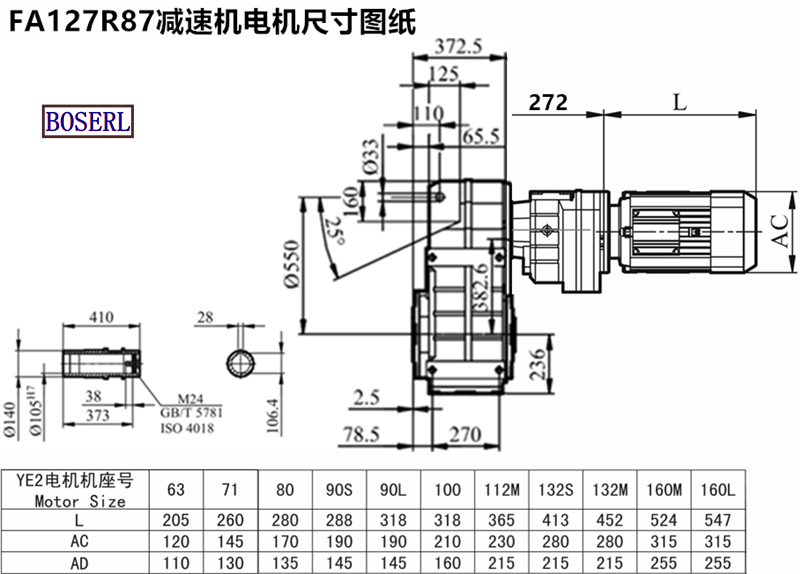

Fa127r87dv160s4 deviation engineInstall size drawings
Fa127r87dv160s4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 55kw power, size of parallel axle speed reduction engine fa127r87dv160s4ffa127r87drrn132l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127R87DV160S4减速机样本 |
|
| FA127R87DV160S4减速机三维图纸 |
|
