FA127RF77-Y0.55KWDetailed Information
Keywords: 75 kw accommodative to parallel axle slasher_ fa127rf77-y0. 55kw_fa127rf77-y3kw_fa127rf77-y132m4
FA127RF77-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127RF77-Y0.55KW | 3926 | 0.55KW | 0.35r/min | 13200N.m | 751kg | 88100N | 0.90 |
| FA127RF77-Y0.55KW | 3454 | 0.55KW | 0.40r/min | 11500N.m | 751kg | 90000N | 1.05 |
| FA127RF77-Y0.55KW | 3031 | 0.55KW | 0.46r/min | 10100N.m | 751kg | 90000N | 1.20 |
Fa127rf77-y3kw deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| AFA127RF77-Y3KW | 727 | 3KW | 2.00r/min | 13200N.m | 771kg | 88100N | 0.90 |
| FA127RF77-Y3KW | 648 | 3KW | 2.20 r/min | 11800N.m | 771kg | 90000N | 1.00 |
| FA127RF77-Y3KW | 549 | 3KW | 2.60r/min | 10000N.m | 771kg | 90000N | 1.20 |
| FA127RF77-Y3KW | 495 | 3KW | 2.90r/min | 9040N.m | 771kg | 90000N | 1.35 |
Fa127rf77-y132m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127RF77-Y132M4 | 428 | 5.5KW | 3.40r/min | 14400N.m | 796kg | 85700N | 0.85 |
| FA127RF77-Y132M4 | 376 | 5.5KW | 3.90r/min | 12600N.m | 796kg | 89200N | 0.95 |
Fa127rf77-y0. 55kw motor for reductionType:
F127rf77-y0. 55 kw bottom foot installation parallel axes - tilt gearGearboc
Fa127brf77-y0. 55kw bottom foot hollow axis installed parallel axle-slash gear reduction machine
Fv127brf77-y0. 55kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa127rf77-y0. 55 kw sky axes installation of parallel axes - tilted gear deviators
Fv127rf77-y0. 55kw sky axis installation of parallel axes - tilt gear deviators
Faf127rf77-y0. 55kw is the parallel axle-slash gear-reducing machine for the b5 french aerocentric axis
Fvf127rf77-y0. 55kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127rf77-y0. 55kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz127rf77-y0. 55kw is the parallel axis of the b14 flannel axle-slasher
Ff127rf77-y0. 55kw is a parallel to the b5-slash gear reduction machine
Fh127brf77-y0. 55kw foot hollow axle locks to install parallel axes-slash gearreducing machines
Fh127rf77-y0. 55kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf127rf77-y0. 55kw is a parallel axle for the b5 axle lock-drive-slasher
Fhz127rf77-y0. 55kw is a parallel axle-slasher for b14 flannel axle locker-slasher

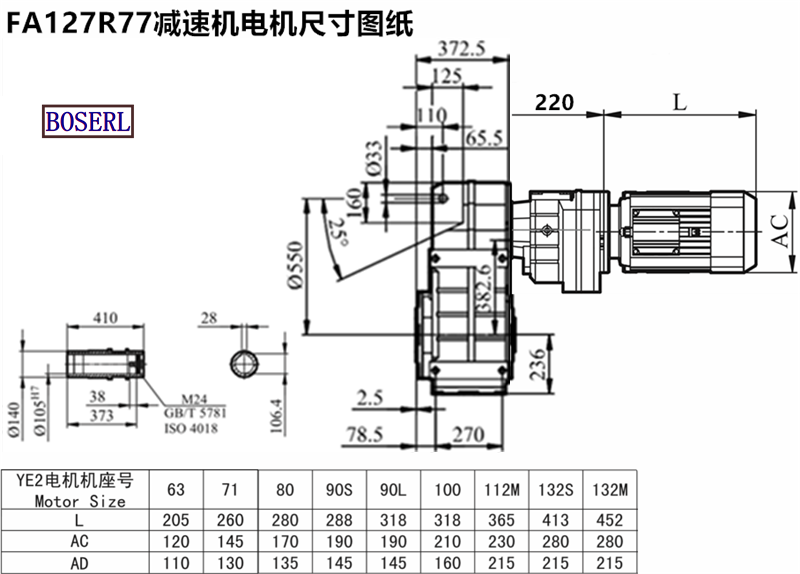

Fa127rf77-y0. 55kw motor for reductionInstall size drawings
Fa127rf77-y0. 55kw motor for reductionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 75kw according to parallel axle slasher fa127rf77-y0. 55 kw fa127rf77-y3kw fa127rf77-y132m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127RF77Y0.55KW减速机样本 |
|
| FA127RF77Y0.55KW减速机三维图纸 |
|
