FA127RF87-Y11KWDetailed Information
Keyword: what's the 4kw electric unit with a parallel axle gears? fa127rf87-y11kw_fa127rf87-y132m4
FA127RF87-Y11KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127RF87-Y11KW | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FA127RF87-Y11KW | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FA127RF87-Y11KW | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Fa127rf87-y132m4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA127RF87-Y132M4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FA127RF87-Y132M4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FA127RF87-Y132M4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FA127RF87-Y132M4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FA127RF87-Y132M4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FA127RF87-Y132M4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Fa127rf87-y11kw power motor for reduction machinesType:
F127rf87-y11kw bottom foot installation parallel axes - tilt gearGearboc
Fa127brf87-y11kw foot hollow axis installed parallel axle-slasher
Fv127brf87-y11kw bottom foot flow axes installation of parallel axes - tilted gear debrillator
Fa127rf87-y11kw sky axis installation of parallel axes - tilt gear deviators
Fv127rf87-y11kw sky axis installation of parallel axes - tilt gear deviators
Faf127rf87-y11kw is a parallel axle for the b5 aerocentric axis - a slasher
Fvf127rf87-y11kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127rf87-y11kw is the parallel axis of the b14-slash gear reduction machine
Fvz127rf87-y11kw is the parallel axis of the b14 flannel axle-slasher
Ff127rf87-y11kw is a parallel axe b5 installation - a slasher
Fh127brf87-y11kw foot hollow axle lock, parallel axle-slasher
Fh127rf87-y11kw is a parallel axle-slasher for empty axle locks
Fhf127rf87-y11kw is the parallel axle for the b5 axle lockboard-slasher-slasher
Fhz127rf87-y11kw is a parallel axle for the b14 axle lock-drive-slasher

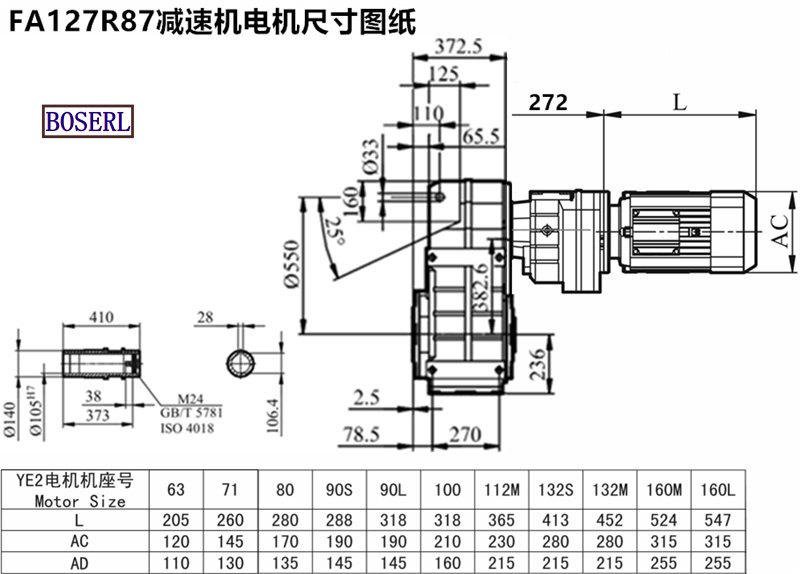

Fa127rf87-y11kw power motor for reduction machinesInstall size drawings
Fa127rf87-y11kw power motor for reduction machinesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What's the parallel axle gears for the 4kw? fa127rf87-y11kw fa127rf87-y132m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA127RF87Y11KW减速机样本 |
|
| FA127RF87Y11KW减速机三维图纸 |
|
