FA157DRS225M4Detailed Information
Keyword: jell-o deviation engine_fa157drs225m4_fa157dr225m4
FA157DRS225M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157DRS225M4 | 68.28 | 45KW | 22.0rpm | 19800N.m | 1285kg | 81400N | 0.90 |
| FA157DRS225M4 | 60.25 | 45KW | 25.0rpm | 17500N.m | 1285kg | 81600N | 1.05 |
| FA157DRS225M4 | 52.24 | 45KW | 28.0rpm | 15100N.m | 1285kg | 81300N | 1.20 |
| FA157DRS225M4 | 46.48 | 45KW | 32.0rpm | 13500N.m | 1285kg | 80800N | 1.35 |
| FA157DRS225M4 | 40.06 | 45KW | 37.0rpm | 11600N.m | 1285kg | 79800N | 1.55 |
| FA157DRS225M4 | 32.55 | 45KW | 45.0rpm | 9460N.m | 1285kg | 78000N | 1.90 |
| FA157DRS225M4 | 27.60 | 45KW | 54.0rpm | 8020N.m | 1285kg | 76200N | 2.20 |
Fa157dr225m4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157DR225M4 | 68.28 | 45KW | 22.0rpm | 19800N.m | 1285kg | 81400N | 0.90 |
| FA157DR225M4 | 60.25 | 45KW | 25.0rpm | 17500N.m | 1285kg | 81600N | 1.05 |
| FA157DR225M4 | 52.24 | 45KW | 28.0rpm | 15100N.m | 1285kg | 81300N | 1.20 |
| FA157DR225M4 | 46.48 | 45KW | 32.0rpm | 13500N.m | 1285kg | 80800N | 1.35 |
| FA157DR225M4 | 40.06 | 45KW | 37.0rpm | 11600N.m | 1285kg | 79800N | 1.55 |
| FA157DR225M4 | 32.55 | 45KW | 45.0rpm | 9460N.m | 1285kg | 78000N | 1.90 |
| FA157DR225M4 | 27.60 | 45KW | 54.0rpm | 8020N.m | 1285kg | 76200N | 2.20 |
Fa157drs225m4 electric motor retarderType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

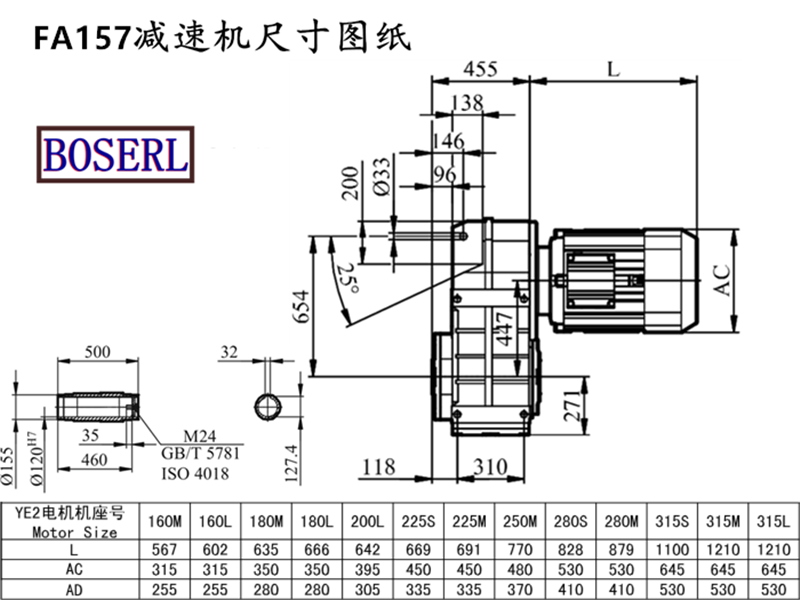

Fa157drs225m4 electric motor retarderInstall size drawings
Fa157drs225m4 electric motor retarderThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Jell-o speed reduction machine fa157drs 225m4 fa157dr225m4
- 上一条FA157DV250M4
- 下一条FA157DM315L4
