FA157R97DR100LC4Detailed Information
Keyword: 0. 55 kw electric power with a parallel axle slash gear brake _fa157r97dr100lc4_fa157r97dve80k4
FA157R97DR100LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DR100LC4 | 1169 | 3KW | 1.20r/min | 21100N.m | 1,086kg | 89500N | 0.85 |
| FA157R97DR100LC4 | 953 | 3KW | 1.50r/min | 17100N.m | 1,086kg | 102800N | 1.05 |
| FA157R97DR100LC4 | 845 | 3KW | 1.70r/min | 15100N.m | 1,086kg | 107900N | 1.20 |
| FA157R97DR100LC4 | 764 | 3KW | 1.90r/min | 13500N.m | 1,086kg | 111100N | 1.30 |
| FA157R97DR100LC4 | 680 | 3KW | 2.10r/min | 12000N.m | 1,086kg | 114000N | 1.50 |
| FA157R97DR100LC4 | 576 | 3KW | 2.50r/min | 10100N.m | 1,086kg | 117000N | 1.75 |
| FA157R97DR100LC4 | 446 | 3KW | 3.30r/min | 7980N.m | 1,086kg | 119800N | 2.20 |
| FA157R97DR100LC4 | 302 | 3KW | 4.80r/min | 5400N.m | 1,086kg | 120000N | 3.30 |
| FA157R97DR100LC4 | 273 | 3KW | 5.30r/min | 4860N.m | 1,086kg | 120000N | 3.70 |
| FA157R97DR100LC4 | 232 | 3KW | 6.30r/min | 4080N.m | 1,086kg | 120000N | 4.40 |
| FA157R97DR100LC4 | 197 | 3KW | 7.40r/min | 3460N.m | 1,086kg | 120000N | 5.20 |
Fa157r97dve80k4 deviation electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DVE80K4 | 6295 | 0.55KW | 0.22r/min | 20100N.m | 1,066kg | 93100N | 0.90 |
| FA157R97DVE80K4 | 5404 | 0.55KW | 0.26r/min | 16800N.m | 1,066kg | 103500N | 1.05 |
| FA157R97DVE80K4 | 2780 | 0.55KW | 0.50r/min | 8660N.m | 1,066kg | 119000N | 2.10 |
| FA157R97DVE80K4 | 2427 | 0.55KW | 0.57r/min | 7660N.m | 1,066kg | 120000N | 2.40 |
| FA157R97DVE80K4 | 1674 | 0.55KW | 0.82r/min | 5440N.m | 1,066kg | 120000N | 3.30 |
| FA157R97DVE80K4 | 1308 | 0.55KW | 1.10r/min | 4200N.m | 1,066kg | 120000N | 4.30 |
| FA157R97DVE80K4 | 1169 | 0.55KW | 1.20r/min | 3680N.m | 1,066kg | 120000N | 4.90 |
Fa157r97dr100lc4 deviation motionType:
F157r97dr100lc4 bottom foot installation parallel axes - tilt gearGearboc
Installation of parallel axes-slash gear brakes on the fa157 br97dr100lc4 foot hollow axis
Fv157 br97dr100lc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dr100lc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dr100lc4 sky axis installation of parallel axes - tilt-trinkler
Faf157r97dr100lc4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dr100lc4 is a parallel axle of the b5 flannel axle-slasher
Faz157r97dr100lc4 is a parallel to the b14 flange-slash gear reduction machine
Fvz157r97dr100lc4 is a parallel axle of b14 flannel cardiac axle-slasher
Ff157r97dr100lc4 is a parallel to the b5-slash gear brake
Fh157 br97dr100lc4 foot hollow axle locks, parallel axle - slasher
Fh157r97dr100lc4 is a parallel axle-slash-slasher for a hollow axle lock
Fhf157r97dr100lc4 is the parallel axle of the b5 axle lock, a slasher
Fhz157r97dr100lc4 is the parallel axle of the b14 axle lock, a slasher

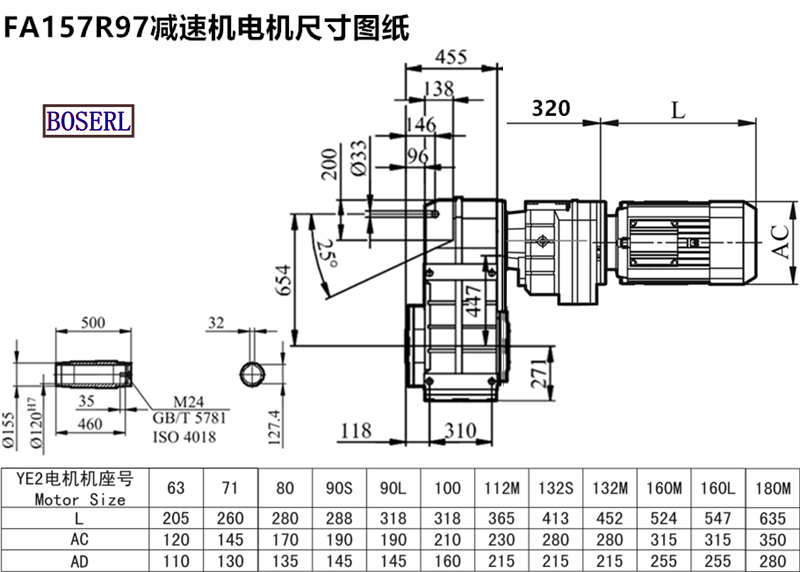

Fa157r97dr100lc4 deviation motionInstall size drawings
Fa157r97dr100lc4 deviation motionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 0. 55kw power with a parallel-axis slash gear reduction engine fa157r97r100lc4ffa157r97dve80k4
