FA157R97DT160MC4Detailed Information
Keyword: how big a parallel axle is the 11kw power? fa157r97dt160mc4_fa157r97dr180s4
FA157R97DT160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DT160MC4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FA157R97DT160MC4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FA157R97DT160MC4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FA157R97DT160MC4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FA157R97DT160MC4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Fa157r97dre180s4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DRE180S4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FA157R97DRE180S4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Fa157r97dt160mc4 deviation motorType:
F157r97dt160mc4 bottom foot installation parallel axes - tilt gearsGearboc
Fa157 br97dt160mc4 foot hollow axis installed parallel axle-slash gear brake
Fv157br97dt160mc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dt160mc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dt160mc4 sky axes installation of parallel axes - tilted gear deviators
Faf157r97dt160mc4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf157r97dt160mc4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157r97dt160mc4 is a parallel axle for b14-slash gear reduction
Fvz157r97dt160mc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dt160mc4 is a parallel axle for b5-slash gear brakes
Fh157 br97dt160mc4 foot hollow axle locks, parallel axle-slash-slasher
Fh157r97dt160mc4 is a parallel axle-slasher for an empty axle lock
Fhf157r97dt160mc4 is a parallel axle for the b5 axle lock, a slasher
Fhz157r97dt160mc4 is the parallel axle of b14 axle lockboard installation - the slasher

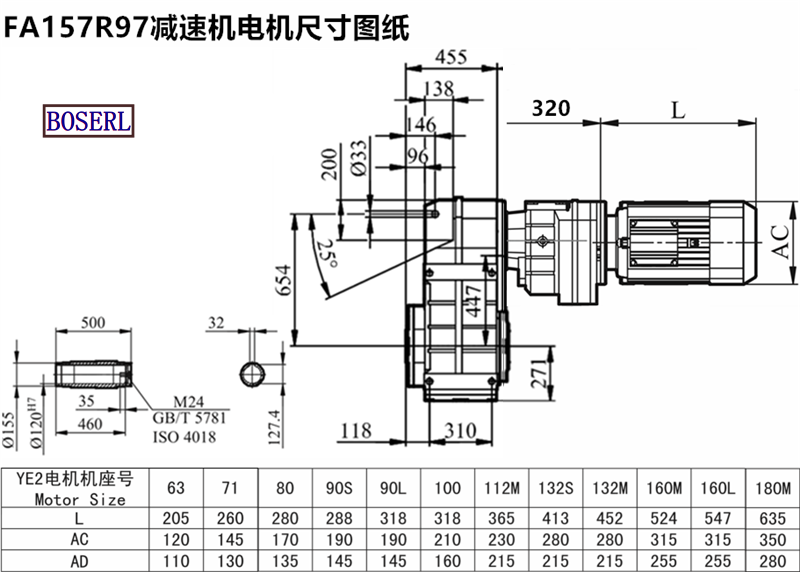

Fa157r97dt160mc4 deviation motorInstall size drawings
Fa157r97dt160mc4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 11kw power size parallel axle deceleration fa157r97dt160mc4 fa157r97dr180s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA157R97DT160MC4减速机样本 |
|
| FA157R97DT160MC4减速机三维图纸 |
|
