FA157R97DT80K4Detailed Information
Keyword: how big a 75kw power is with a parallel axle slasher _fa157r97dt80k4_fa157r97dr160mc4
FA157R97DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DT80K4 | 6295 | 0.55KW | 0.22r/min | 20100N.m | 1,066kg | 93100N | 0.90 |
| FA157R97DT80K4 | 5404 | 0.55KW | 0.26r/min | 16800N.m | 1,066kg | 103500N | 1.05 |
| FA157R97DT80K4 | 2780 | 0.55KW | 0.50r/min | 8660N.m | 1,066kg | 119000N | 2.10 |
| FA157R97DT80K4 | 2427 | 0.55KW | 0.57r/min | 7660N.m | 1,066kg | 120000N | 2.40 |
| FA157R97DT80K4 | 1674 | 0.55KW | 0.82r/min | 5440N.m | 1,066kg | 120000N | 3.30 |
| FA157R97DT80K4 | 1308 | 0.55KW | 1.10r/min | 4200N.m | 1,066kg | 120000N | 4.30 |
| FA157R97DT80K4 | 1169 | 0.55KW | 1.20r/min | 3680N.m | 1,066kg | 120000N | 4.90 |
Fa157r97dre160mc4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157R97DRE160MC4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FA157R97DRE160MC4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FA157R97DRE160MC4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FA157R97DRE160MC4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FA157R97DRE160MC4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Fa157r97dt80k4 deviation motorType:
F157r97dt80k4 bottom foot installation parallel axes - tilt gearGearboc
Fa157br97dt80k bottom foot hollow axis installed parallel axle-slash gear reduction machine
Fv157br97dt80k4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dt80k4 sky axis installation parallel axle-slash gear brake
Fv157r97dt80k4 sky axis installation of parallel axes - tilt gear deviators
Faf157r97dt80k4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dt80k4 is a parallel axle of b5 francium cortex installed - a slasher
Faz157r97dt80k4 is a parallel axle for b14-slash gear reduction
Fvz157r97dt80k4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dt80k4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dt80k bottom foot hollow axle lock, parallel axle-slasher
Fh157r97dt80k4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157r97dt80k4 is a parallel axle for the b5 axle lock, a slasher
Fhz157r97dt80k4 is a parallel axle for the b14 axle lock-drive

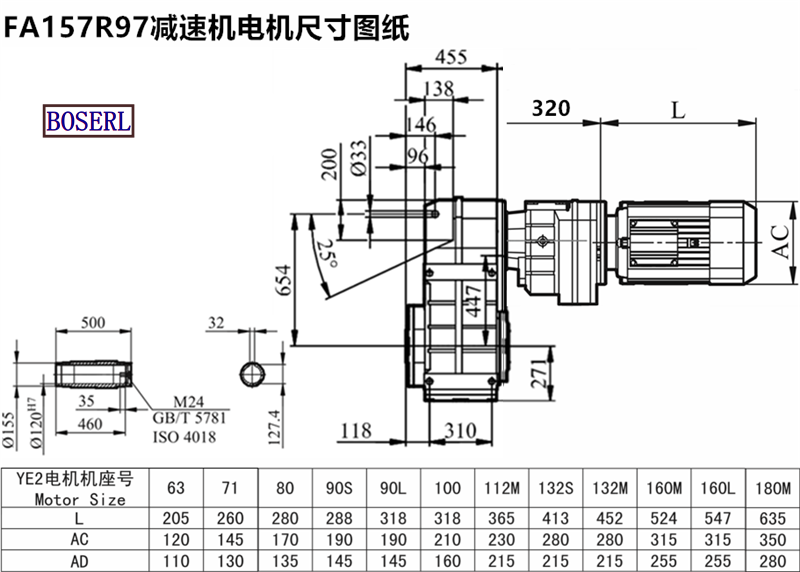

Fa157r97dt80k4 deviation motorInstall size drawings
Fa157r97dt80k4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
