FA157RF97-Y0.55KWDetailed Information
Keyword: how big axle gears are for 160kw powerers _fa157rf97-y0. 55kw_fa157rf97-y18. 5kw
FA157RF97-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y0.55KW | 6295 | 0.55KW | 0.22r/min | 20100N.m | 1,066kg | 93100N | 0.90 |
| FA157RF97-Y0.55KW | 5404 | 0.55KW | 0.26r/min | 16800N.m | 1,066kg | 103500N | 1.05 |
| FA157RF97-Y0.55KW | 2780 | 0.55KW | 0.50r/min | 8660N.m | 1,066kg | 119000N | 2.10 |
| FA157RF97-Y0.55KW | 2427 | 0.55KW | 0.57r/min | 7660N.m | 1,066kg | 120000N | 2.40 |
| FA157RF97-Y0.55KW | 1674 | 0.55KW | 0.82r/min | 5440N.m | 1,066kg | 120000N | 3.30 |
| FA157RF97-Y0.55KW | 1308 | 0.55KW | 1.10r/min | 4200N.m | 1,066kg | 120000N | 4.30 |
| FA157RF97-Y0.55KW | 1169 | 0.55KW | 1.20r/min | 3680N.m | 1,066kg | 120000N | 4.90 |
Fa157rf97-y18. 5kw reduction engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y18.5KW | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FA157RF97-Y18.5KW | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Fa157rf97-y0. 55kw power motor for reduction machinesType:
F157rf97-y0. 55kw bottom foot installation parallel axes - tilt gearsGearboc
Fa157brf97-y0. 55kw foot hollow axis installed parallel axle-slasher
Fv157brf97-y0. 55kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa157rf97-y0. 55kw sky axes installation of parallel axes - tilt gear deviators
Fv157rf97-y0. 55kw sky axis installation of parallel axes - tilt-truck deviators
Faf157rf97-y0. 55kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf157rf97-y0. 55kw is the parallel axle of the b5 flannel axle-slasher
Faz157rf97-y0. 55kw is the parallel axle-slash gear-reducing machine for b14 frank
Fvz157rf97-y0. 55kw is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157rf97-y0. 55kw is a parallel axle for b5 installation - a slasher
Fh157brf97-y0. 55kw foot hollow axle locks to install parallel axes-slash gearreducing machines
Fh157rf97-y0. 55kw is a parallel axle-slash-slasher for empty axle locks
Fhf157rf97-y0. 55kw is a parallel axle-slasher for b5 franium axle lockboards
Fhz157rf97-y0. 55kw is a parallel axle-slasher for the b14 axes lockboards - a slasher

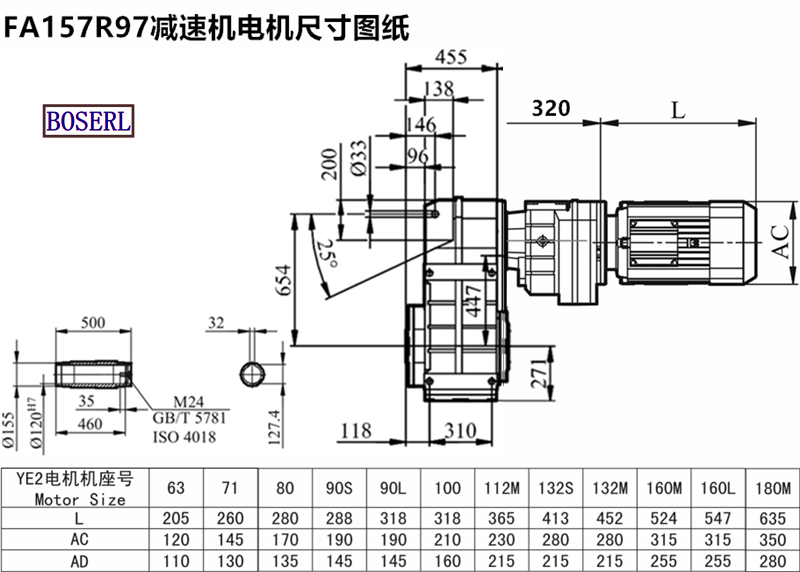

Fa157rf97-y0. 55kw power motor for reduction machinesInstall size drawings
Fa157rf97-y0. 55kw power motor for reduction machinesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 160kw power unit size of parallel axle gear reduction engine fa157rf97-y0. 55 kw a157rf97-y18. 5kw
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA157RF97Y0.55KW减速机样本 |
|
| FA157RF97Y0.55KW减速机三维图纸 |
|
