FA157RF97-Y0.75KWDetailed Information
Keyword: 0. 75 kw power with a parallel axle deceleration _ fa157rf97-y0. 75kw_fa157rf97-y90m4
FA157RF97-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y0.75KW | 2780 | 0.75KW | 0.52r/min | 11700N.m | 1,067kg | 114600N | 1.55 |
| FA157RF97-Y0.75KW | 1674 | 0.75KW | 0.86r/min | 7310N.m | 1,067kg | 120000N | 2.50 |
| FA157RF97-Y0.75KW | 2427 | 0.75KW | 0.59r/min | 10300N.m | 1,067kg | 116800N | 1.75 |
| FA157RF97-Y0.75KW | 1308 | 0.75KW | 1.10r/min | 5640N.m | 1,067kg | 120000N | 3.20 |
| FA157RF97-Y0.75KW | 1169 | 0.75KW | 1.20r/min | 4980N.m | 1,067kg | 120000N | 3.60 |
Fa157rf97-y90m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y90M4 | 2780 | 1.1KW | 0.51r/min | 17900N.m | 1,071kg | 100500N | 1.00 |
| FA157RF97-Y90M4 | 2427 | 1.1KW | 0.58r/min | 15800N.m | 1,071kg | 106100N | 1.15 |
| FA157RF97-Y90M4 | 2185 | 1.1KW | 0.65r/min | 14100N.m | 1,071kg | 110000N | 1.25 |
| FA157RF97-Y90M4 | 1944 | 1.1KW | 0.73r/min | 12500N.m | 1,071kg | 113100N | 1.45 |
| FA157RF97-Y90M4 | 1674 | 1.1KW | 0.85r/min | 11100N.m | 1,071kg | 115600N | 1.60 |
| FA157RF97-Y90M4 | 1308 | 1.1KW | 1.10r/min | 8610N.m | 1,071kg | 119100N | 2.10 |
| FA157RF97-Y90M4 | 1169 | 1.1KW | 1.20r/min | 7630N.m | 1,071kg | 120000N | 2.40 |
| FA157RF97-Y90M4 | 953 | 1.1KW | 1.50r/min | 6100N.m | 1,071kg | 120000N | 3.00 |
| FA157RF97-Y90M4 | 845 | 1.1KW | 1.70r/min | 5330N.m | 1,071kg | 120000N | 3.40 |
| FA157RF97-Y90M4 | 446 | 1.1KW | 3.20r/min | 2810N.m | 1,071kg | 120000N | 6.40 |
| FA157RF97-Y90M4 | 302 | 1.1KW | 4.70r/min | 1900 N.m | 1,071kg | 120000N | 9.40 |
Fa157rf97-y0. 75kw power motor for reduction machinesType:
F157rf97-y0. 75 kw bottom foot installation parallel axes - tilt gearsGearboc
Fa157brf97-y0. 75kw foot hollow axis installed parallel axle-slasher
Fv157brf97-y0. 75kw bottom feet axis installation of parallel axes - tilt gear depressors
Fa157rf97-y0. 75 kw sky axes installation of parallel axes - tilt gear deviators
Fv157rf97-y0. 75kw sky axis installation of parallel axes - tilt-truck deviators
Faf157rf97-y0. 75kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf157rf97-y0. 75kw is the parallel axle of b5 flannel axle-slasher
Faz157rf97-y0. 75kw is a parallel axle-slasher for b14 frank
Fvz157rf97-y0. 75kw is the parallel axis of the b14 flannel axle-slasher
Ff157rf97-y0. 75kw is a parallel axe b5 installation - a tilt gear brake
Fh157brf97-y0. 75kw foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh157rf97-y0. 75kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf157rf97-y0. 75kw is a parallel axle-sweet gear-reducing machine installed on the b5 axle lockboard
Fhz157rf97-y0. 75kw is a parallel axle-slash-slasher for b14 flannel axle lockboard

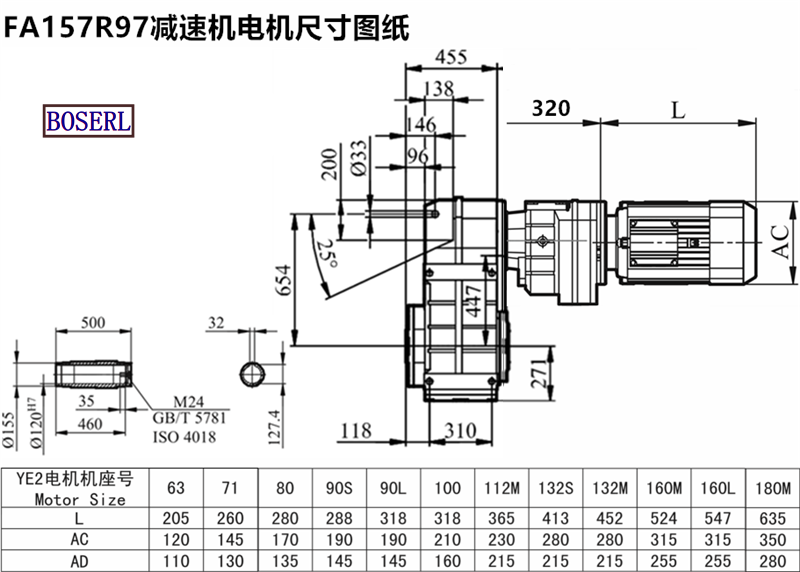

Fa157rf97-y0. 75kw power motor for reduction machinesInstall size drawings
Fa157rf97-y0. 75kw power motor for reduction machinesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
