FA157RF97-Y11KWDetailed Information
Keywords: how big a parallel axle gear brake is with a 200kw power unit _fa157rf97-y11kw_fa157rf97-y15kw
FA157RF97-Y11KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y11KW | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FA157RF97-Y11KW | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FA157RF97-Y11KW | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FA157RF97-Y11KW | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FA157RF97-Y11KW | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Fa157rf97-y15kw power-reducing machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA157RF97-Y15KW | 232 | 15KW | 6.30r/min | 21100N.m | 1,186kg | 89700N | 0.85 |
| FA157RF97-Y15KW | 202 | 15KW | 7.20r/min | 18400N.m | 1,186kg | 99000N | 1.00 |
| FA157RF97-Y15KW | 197 | 15KW | 7.50r/min | 17900N.m | 1,186kg | 100500N | 1.00 |
Fa157rf97-y11kw power driveType:
F157rf97-y11kw bottom foot installation parallel axes - tilt gearGearboc
Fa157bf97-y11kw foot hollow axis installed parallel axle-slasher
Fv157brf97-y11kw bottom foot flow axes installation of parallel axes - tilt gear deviators
Fa157rf97-y11kw sky axis installation of parallel axes - tilt gear deviators
Fv157rf97-y11kw sky axis installation of parallel axes - tilt-truck deviators
Faf157rf97-y11kw is the parallel axle of the b5 aerocentric axle-slasher
Fvf157rf97-y11kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz157rf97-y11kw is a parallel to the b14 franc installation of a side axle-slasher
Fvz157rf97-y11kw is the parallel axis of the b14 flannel axle-slasher
Ff157rf97-y11kw is a parallel to the b5-slash gear brake
Fh157brf97-y11kw foot hollow axle locks to install parallel axes-slash gearreducing machines
Fh157rf97-y11kw is the parallel axle-slash-slasher for the empty axle lock
Fhf157rf97-y11kw is the parallel axle for the b5 axle lock, a slasher
Fhz157rf97-y11kw is a parallel axle-slasher for b14 aerocentric lockboards-slasher

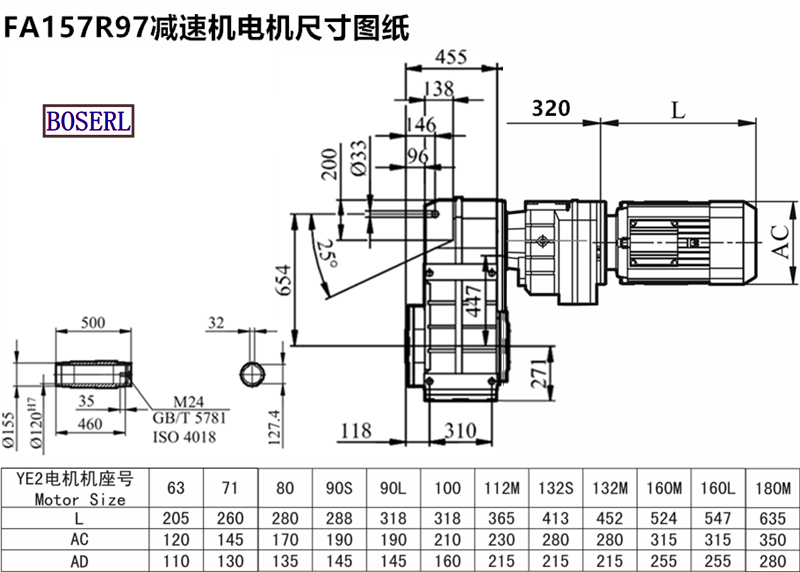

Fa157rf97-y11kw power driveInstall size drawings
Fa157rf97-y11kw power driveThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 200kw power, size of parallel axle gear reduction engine fa157rf97-y11kw fa157rf97-y15kw
