11kw's power plant with a parallel axle reduction box _fa57r37dm63l4_boserl moving fa57r37drrs71ms4 manufacturer

FA57R37DM63L4Detailed Information

prevnext

FA57R37DM63L4

TEL：Email:[email protected]

详细信息

Keyword: what parallel axle-reducing box for 11kw power _fa57r37dm63l4_fa57r37drrs71ms4

FA57R37DM63L4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA57R37DM63L4	558	0.18KW	2.40r/min	635N.m	48.5kg	7570N	0.95
FA57R37DM63L4	506	0.18KW	2.60r/min	570N.m	48.5kg	9420N	1.05
FA57R37DM63L4	452	0.18KW	2.90r/min	495N.m	48.5kg	9930N	1.20
FA57R37DM63L4	386	0.18KW	3.40r/min	425N.m	48.5kg	10400N	1.40
FA57R37DM63L4	338	0.18KW	3.90r/min	370N.m	48.5kg	10700N	1.60
FA57R37DM63L4	426	0.18KW	3.10r/min	500N.m	48.5kg	9910N	1.20
FA57R37DM63L4	382	0.18KW	3.50r/min	445N.m	48.5kg	10300N	1.35
FA57R37DM63L4	330	0.18KW	4.00r/min	380N.m	48.5kg	10700N	1.55
FA57R37DM63L4	298	0.18KW	4.40r/min	340N.m	48.5kg	10900N	1.75
FA57R37DM63L4	262	0.18KW	5.00r/min	300N.m	48.5kg	11100N	2.00
FA57R37DM63L4	226	0.18KW	5.80r/min	255N.m	48.5kg	11400N	2.30
FA57R37DM63L4	200	0.18KW	6.60r/min	220N.m	48.5kg	11500N	2.70

Fa57r37drrs71ms4reducing engine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA57R37DRS71MS4	386	0.25KW	3.40r/min	620N.m	52.5kg	8830N	0.95
FA57R37DRS71MS4	338	0.25KW	3.80r/min	540N.m	52.5kg	9640N	1.10
FA57R37DRS71MS4	255	0.25KW	5.10r/min	405N.m	52.5kg	10500N	1.45
FA57R37DRS71MS4	382	0.25KW	3.40r/min	635N.m	52.5kg	7390N	0.95
FA57R37DRS71MS4	330	0.25KW	3.90r/min	550N.m	52.5kg	9570N	1.10
FA57R37DRS71MS4	298	0.25KW	4.40r/min	495N.m	52.5kg	9950N	1.20
FA57R37DRS71MS4	262	0.25KW	5.00r/min	435N.m	52.5kg	10300N	1.35
FA57R37DRS71MS4	226	0.25KW	5.80r/min	370N.m	52.5kg	10700N	1.60
FA57R37DRS71MS4	200	0.25KW	6.50r/min	320N.m	52.5kg	11000N	1.85
FA57R37DRS71MS4	170	0.25KW	7.60r/min	275N.m	52.5kg	11300N	2.20

Fa57r37dm63l4 deviation motorType:

F57r37dm63l4 bottom foot installation of parallel axes - tilt gearGearboc

Fa57br37dm63l4 foot hollow axis installed parallel axle-slash gear brake

Fv57br37dm63l4 bottom feet sky axes installation of parallel axes - tilt gear deviators

Fa57r37dm63l4 sky axes installation of parallel axes - tilt gear deviators

Fv57r37dm63l4 sky axes installation of parallel axes - tilt-truck deviators

Faf57r37dm63l4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis

Fvf57r37dm63l4 is a parallel axle-slash gear-reducing machine for the b5-franco-air

Faz57r37dm63l4 is a parallel axle for b14f

Fvz57r37dm63l4 is a parallel axle for b14 flannel axle-slasher

Ff57r37dm63l4 is a parallel to the b5-slash gear reduction machine

Fh57br37dm63l4 foot hollow axle locks, parallel axle-slash-slasher

Fh57r37dm63l4 is a parallel axle-slash-slasher for the empty axle lock

Fhf57r37dm63l4 is a parallel axle for the b5 axle lock-drive

Fhz57r37dm63l4 is a parallel axle for the b14 axle lockboard-slasher-slasher

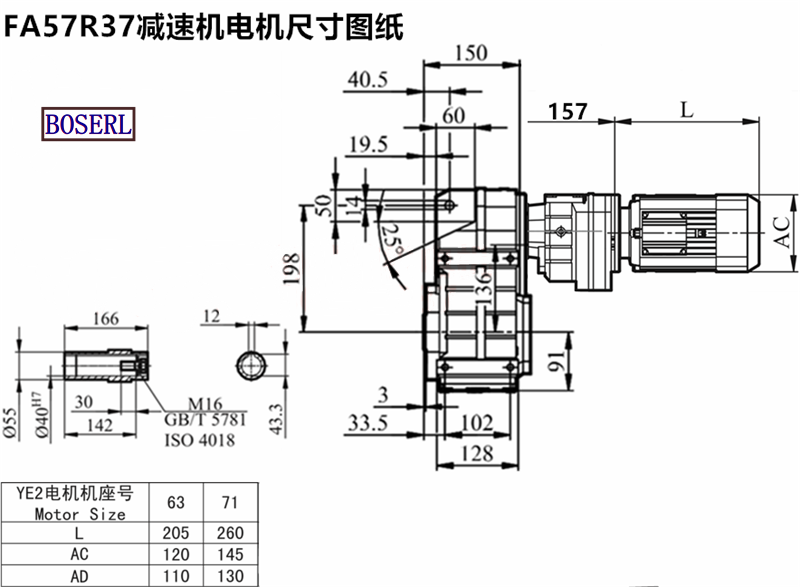

Fa57r37dm63l4 deviation motorInstall size drawings

Fa57r37dm63l4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: 11kw's power plant with a parallel axle reduction box fa57r37dm63l4 fa57r37drrs71ms4

上一条FA57R37DM63MS4
下一条FA57R37DM71MS4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FA57R37DM63L4减速机样本
FA57R37DM63L4减速机三维图纸
