3kw's power plant with a parallel axle-reducing box _fa57r37dm71m4_boserl moving fa57r37drrs63m4-reducing plant

FA57R37DM71M4Detailed Information

prevnext

FA57R37DM71M4

TEL：Email:[email protected]

详细信息

Keyword: what parallel axle-reducing box for 3kw power _fa57r37dm71m4_fa57r37drs63m4

FA57R37DM71M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA57R37DM71M4	255	0.37KW	5.40r/min	580N.m	53kg	9330N	1.05
FA57R37DM71M4	201	0.37KW	6.90r/min	455N.m	53kg	10200N	1.30
FA57R37DM71M4	181	0.37KW	7.60r/min	410N.m	53kg	10500N	1.45
FA57R37DM71M4	262	0.37KW	5.30r/min	615N.m	53kg	9070N	0.95
FA57R37DM71M4	226	0.37KW	6.10r/min	525N.m	53kg	9740N	1.15
FA57R37DM71M4	200	0.37KW	6.90r/min	460N.m	53kg	10200N	1.30
FA57R37DM71M4	170	0.37KW	8.10r/min	390N.m	53kg	10600N	1.50
FA57R37DM71M4	152	0.37KW	9.00r/min	345N.m	53kg	10900N	1.70
FA57R37DM71M4	134	0.37KW	10.0r/min	305N.m	53kg	11100N	1.95

FA57R37DRS63M4Induction Motor 3Ph machine electrical parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA57R37DRS63M4	851	0.12KW	1.60r/min	610N.m	48kg	9100N	1.00
FA57R37DRS63M4	738	0.12KW	1.90r/min	520N.m	48kg	9750N	1.15
FA57R37DRS63M4	646	0.12KW	2.10r/min	455N.m	48kg	10200N	1.30
FA57R37DRS63M4	558	0.12KW	2.50r/min	385N.m	48kg	10600N	1.55
FA57R37DRS63M4	506	0.12KW	2.70r/min	345N.m	48kg	10900N	1.75
FA57R37DRS63M4	452	0.12KW	3.00r/min	295N.m	48kg	11100N	2.00
FA57R37DRS63M4	426	0.12KW	3.20r/min	310N.m	48kg	11100N	1.95
FA57R37DRS63M4	382	0.12KW	3.60r/min	270N.m	48kg	11300N	2.20
FA57R37DRS63M4	330	0.12KW	4.20r/min	230N.m	48kg	11500N	2.60
FA57R37DRS63M4	298	0.12KW	4.60r/min	210N.m	48kg	11500N	2.80
FA57R37DRS63M4	262	0.12KW	5.30r/min	185N.m	48kg	11500N	3.20

Fa57r37dm71m4 deviation motorType:

F57r37dm71m4 bottom foot installation of parallel axes - tilt gearGearboc

Fa57br37dm71m4 foot hollow axis installed parallel axle-slash gear brake

Fv57br37dm71m4 bottom feet axis installation of parallel axes - tilt gear deviators

Fa57r37dm71m4 sky axes installation of parallel axes - tilted gear deviators

Fv57r37dm71m4 sky axis installation of parallel axes - tilt-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-stell-stell-stell-stell-steal-stell-stell-stell-stell-stell-stell-ste-stell-stell-ste-ste-ste-ste-ste-stell-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-ste-ste-ste-ste-ste-ste-s

Faf57r37dm71m4 is a parallel axle for the b5 aerocentric axle-slasher

Fvf57r37dm71m4 is a parallel axle for b5 flannel axle-slasher

Faz57r37dm71m4 is a parallel axle for b14f

Fvz57r37dm71m4 is a parallel axle for the b14 flannel axle-slasher

Ff57r37dm71m4 is a parallel axle for b5-slash gears

Fh57br37dm71m4 foot hollow axle locks, parallel axle-slasher

Fh57r37dm71m4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock

Fhf57r37dm71m4 is a parallel axle for the b5 axle lock-drive

Fhz57r37dm71m4 is a parallel axle-slasher for b14 aerocardiograms

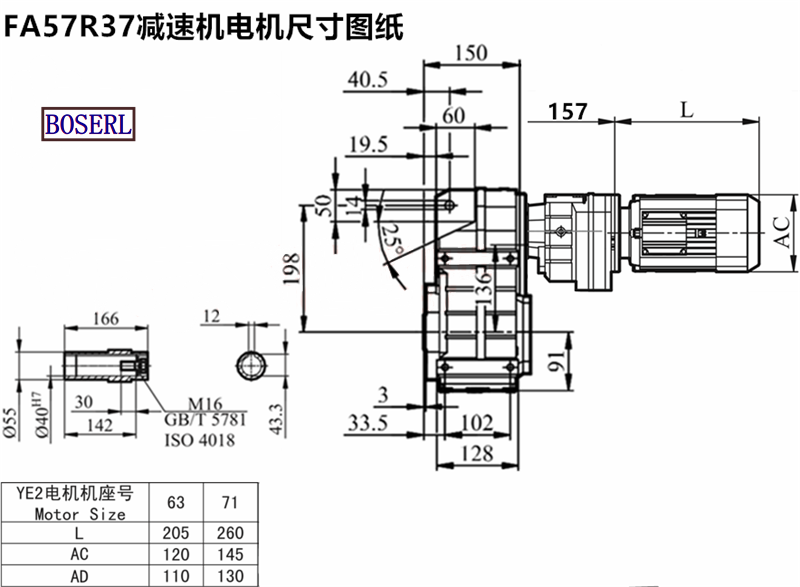

Fa57r37dm71m4 deviation motorInstall size drawings

Fa57r37dm71m4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
