FA57R37DT63M4Detailed Information
Keyword: 160kw powerer with a parallel axle gear-reducing power _ fa57r37dt63m4_fa57r37dre71m4
FA57R37DT63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA57R37DT63M4 | 851 | 0.12KW | 1.60r/min | 610N.m | 48kg | 9100N | 1.00 |
| FA57R37DT63M4 | 738 | 0.12KW | 1.90r/min | 520N.m | 48kg | 9750N | 1.15 |
| FA57R37DT63M4 | 646 | 0.12KW | 2.10r/min | 455N.m | 48kg | 10200N | 1.30 |
| FA57R37DT63M4 | 558 | 0.12KW | 2.50r/min | 385N.m | 48kg | 10600N | 1.55 |
| FA57R37DT63M4 | 506 | 0.12KW | 2.70r/min | 345N.m | 48kg | 10900N | 1.75 |
| FA57R37DT63M4 | 452 | 0.12KW | 3.00r/min | 295N.m | 48kg | 11100N | 2.00 |
| FA57R37DT63M4 | 426 | 0.12KW | 3.20r/min | 310N.m | 48kg | 11100N | 1.95 |
| FA57R37DT63M4 | 382 | 0.12KW | 3.60r/min | 270N.m | 48kg | 11300N | 2.20 |
| FA57R37DT63M4 | 330 | 0.12KW | 4.20r/min | 230N.m | 48kg | 11500N | 2.60 |
| FA57R37DT63M4 | 298 | 0.12KW | 4.60r/min | 210N.m | 48kg | 11500N | 2.80 |
| FA57R37DT63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 48kg | 11500N | 3.20 |
Fa57r37dre71m4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA57R37DRE71M4 | 255 | 0.37KW | 5.40r/min | 580N.m | 53kg | 9330N | 1.05 |
| FA57R37DRE71M4 | 201 | 0.37KW | 6.90r/min | 455N.m | 53kg | 10200N | 1.30 |
| FA57R37DRE71M4 | 181 | 0.37KW | 7.60r/min | 410N.m | 53kg | 10500N | 1.45 |
| FA57R37DRE71M4 | 262 | 0.37KW | 5.30r/min | 615N.m | 53kg | 9070N | 0.95 |
| FA57R37DRE71M4 | 226 | 0.37KW | 6.10r/min | 525N.m | 53kg | 9740N | 1.15 |
| FA57R37DRE71M4 | 200 | 0.37KW | 6.90r/min | 460N.m | 53kg | 10200N | 1.30 |
| FA57R37DRE71M4 | 170 | 0.37KW | 8.10r/min | 390N.m | 53kg | 10600N | 1.50 |
| FA57R37DRE71M4 | 152 | 0.37KW | 9.00r/min | 345N.m | 53kg | 10900N | 1.70 |
| FA57R37DRE71M4 | 134 | 0.37KW | 10.0r/min | 305N.m | 53kg | 11100N | 1.95 |
Fa57r37dt63m4 reduction motor Type:
F57r37dt63m4 bottom foot installation parallel axes - tilt gearGearboc
Fa57br37dt63m4 foot hollow axis installed parallel axle-slash gear brake
Fv57br37dt63m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa57r37dt63m4 sky axes installation of parallel axes - tilt gear deviators
Fv57r37dt63m4 sky axis installation of parallel axes - tilt-trinkler
Faf57r37dt63m4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf57r37dt63m4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis
Faz57r37dt63m4 is a parallel axle for b14f
Fvz57r37dt63m4 is a parallel axle for the b14 flannel axle-slasher
Ff57r37dt63m4 is a parallel to the b5-slash gear brake
Fh57br37dt63m4 foot hollow axle lock, parallel axle-slash-slasher
Fh57r37dt63m4 is an empty axle lock-drive installation of parallel axle-slash gear-reducing machine
Fhf57r37dt63m4 is a parallel axle-slasher for the b5 axle lock
Fhz57r37dt63m4 is a parallel axle for the b14 axle lock-drive

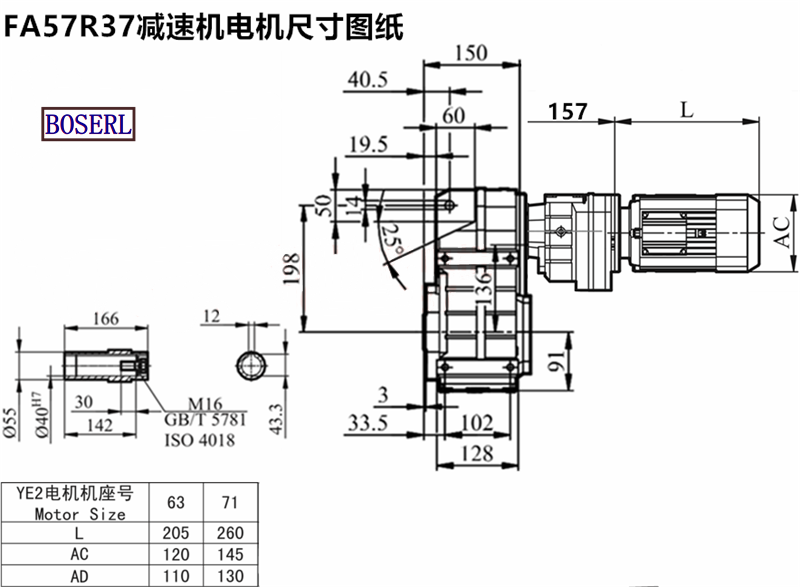

Fa57r37dt63m4 reduction motor Install size drawings
Fa57r37dt63m4 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
