FA67DVE112M4Detailed Information

FA67DVE112M4
prevnext

FA67DVE112M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: transmitting lubricant-reducing motors_fa67dve112m4_fa67drn112m4

FA67DVE112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA67DVE112M427.414KW53.0rpm715N.m101Kg11100N1.15
FA67DVE112M425.134KW58.0rpm655N.m101Kg11600N1.25
FA67DVE112M422.054KW66.0rpm575N.m101Kg12000N1.40
FA67DVE112M420.904KW70.0rpm545N.m101Kg12200N1.50
FA67DVE112M418.294KW80.0rpm475N.m101Kg12500N1.70
FA67DVE112M416.484KW89.0rpm430N.m101Kg12700N1.90
FA67DVE112M414.464KW101rpm375N.m101Kg12900N2.20
FA67DVE112M412.764KW114rpm330N.m101Kg13000N2.50
FA67DVE112M411.314KW129rpm295N.m101Kg13000N2.80
FA67DVE112M49.664KW151rpm250N.m101Kg13000N3.20
FA67DVE112M49.084KW161rpm235N.m101Kg12900N2.20
FA67DVE112M48.604KW170rpm225N.m101Kg12700N2.50
FA67DVE112M47.534KW194rpm197N.m101Kg12300N3.10
FA67DVE112M46.784KW215rpm178N.m101Kg12000N3.50
FA67DVE112M45.954KW245rpm156N.m101Kg11700N3.90
FA67DVE112M42784KW137rpm5.25N.m101Kg11300N4.30
FA67DVE112M43144KW122rpm4.66N.m101Kg11000N4.60
FA67DVE112M43674KW104rpm3.97N.m101Kg10500N4.80

Fa67drn112m4 reduction motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA67DRN112M427.414KW53.0rpm715N.m101Kg11100N1.15
FA67DRN112M425.134KW58.0rpm655N.m101Kg11600N1.25
FA67DRN112M422.054KW66.0rpm575N.m101Kg12000N1.40
FA67DRN112M420.904KW70.0rpm545N.m101Kg12200N1.50
FA67DRN112M418.294KW80.0rpm475N.m101Kg12500N1.70
FA67DRN112M416.484KW89.0rpm430N.m101Kg12700N1.90
FA67DRN112M414.464KW101rpm375N.m101Kg12900N2.20
FA67DRN112M412.764KW114rpm330N.m101Kg13000N2.50
FA67DRN112M411.314KW129rpm295N.m101Kg13000N2.80
FA67DRN112M49.664KW151rpm250N.m101Kg13000N3.20
FA67DRN112M49.084KW161rpm235N.m101Kg12900N2.20
FA67DRN112M48.604KW170rpm225N.m101Kg12700N2.50
FA67DRN112M47.534KW194rpm197N.m101Kg12300N3.10
FA67DRN112M46.784KW215rpm178N.m101Kg12000N3.50
FA67DRN112M45.954KW245rpm156N.m101Kg11700N3.90
FA67DRN112M42784KW137rpm5.25N.m101Kg11300N4.30
FA67DRN112M43144KW122rpm4.66N.m101Kg11000N4.60
FA67DRN112M43674KW104rpm3.97N.m101Kg10500N4.80

Fa67dve112m4reducing motorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

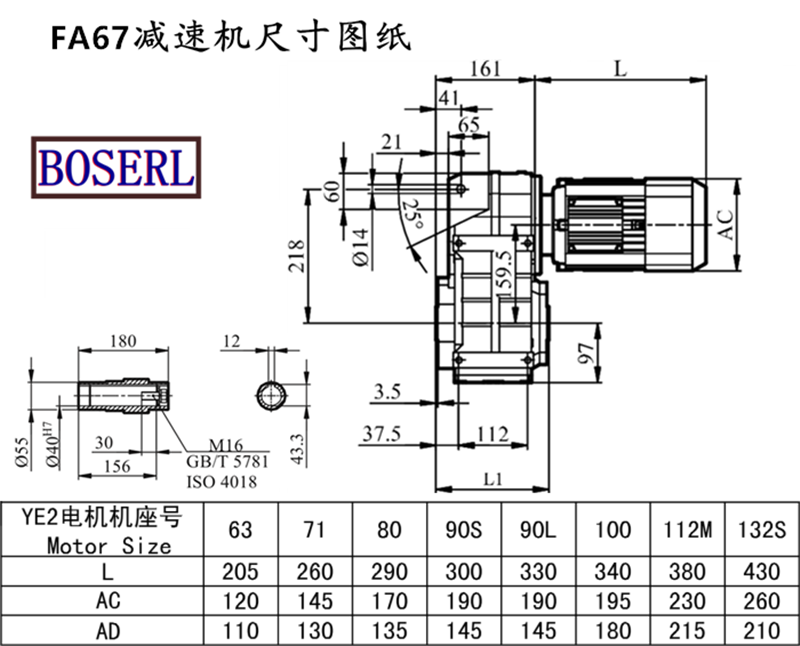

Fa67dve112m4reducing motorInstall size drawings



Fa67dve112m4reducing motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW


标签:   a67dve112m4ffa67drn112m4
tags：    a67dve112m4ffa67drn112m4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FA67DVE112M4减速机样本 Click to download
FA67DVE112M4减速机三维图纸 Click to download
