Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > Conveyor motor

Fa67/g gear-reducing box electricsDetailed Information

Fa67/g gear-reducing box electrics
prevnext

Fa67/g gear-reducing box electrics

TEL：Email:[email protected]
  1. 详细信息

Keyword: fa67/g gear-reducing tank electric unit _fa67/gy112m4_fa67/gy132m4_fa67/g gear-reducing box _fa67/g gear-reducing box manufacturer _fa67/g gear-reducing box manufacturer

FA67/GY112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA67/GY112M427.414KW53.0rpm715N.m101Kg11100N1.15
FA67/GY112M425.134KW58.0rpm655N.m101Kg11600N1.25
FA67/GY112M422.054KW66.0rpm575N.m101Kg12000N1.40
FA67/GY112M420.904KW70.0rpm545N.m101Kg12200N1.50
FA67/GY112M418.294KW80.0rpm475N.m101Kg12500N1.70
FA67/GY112M416.484KW89.0rpm430N.m101Kg12700N1.90
FA67/GY112M414.464KW101rpm375N.m101Kg12900N2.20
FA67/GY112M412.764KW114rpm330N.m101Kg13000N2.50
FA67/GY112M411.314KW129rpm295N.m101Kg13000N2.80
FA67/GY112M49.664KW151rpm250N.m101Kg13000N3.20
FA67/GY112M49.084KW161rpm235N.m101Kg12900N2.20
FA67/GY112M48.604KW170rpm225N.m101Kg12700N2.50
FA67/GY112M47.534KW194rpm197N.m101Kg12300N3.10
FA67/GY112M46.784KW215rpm178N.m101Kg12000N3.50
FA67/GY112M45.954KW245rpm156N.m101Kg11700N3.90
FA67/GY112M42784KW137rpm5.25N.m101Kg11300N4.30
FA67/GY112M43144KW122rpm4.66N.m101Kg11000N4.60
FA67/GY112M43674KW104rpm3.97N.m101Kg10500N4.80

FA67/GY132M4Induction Motor 3Ph machine electrical parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA67/GY132M422.055.5KW66.0rpm795N.m115Kg10500N1.05
FA67/GY132M420.905.5KW70.0rpm750N.m115Kg10900N1.10
FA67/GY132M418.295.5KW80.0rpm660N.m115Kg11500N1.25
FA67/GY132M416.485.5KW88.0rpm590N.m115Kg11900N1.40
FA67/GY132M414.465.5KW101rpm520N.m115Kg12300N1.55
FA67/GY132M412.765.5KW114rpm460N.m115Kg12600N1.80
FA67/GY132M411.315.5KW129rpm405N.m115Kg12800N2.00
FA67/GY132M49.665.5KW151rpm345N.m115Kg12900N2.40
FA67/GY132M49.085.5KW160rpm325N.m115Kg12400N1.60
FA67/GY132M48.605.5KW169rpm310N.m115Kg12200N1.85
FA67/GY132M47.535.5KW193rpm270N.m115Kg11900N2.20
FA67/GY132M46.785.5KW214rpm240N.m115Kg11700N2.50
FA67/GY132M45.955.5KW245rpm210N.m115Kg11300N2.80
FA67/GY132M45.255.5KW277rpm190N.m115Kg11000N3.10
FA67/GY132M44.665.5KW313rpm168N.m115Kg10700N3.30
FA67/GY132M43.975.5KW366rpm144N.m115Kg10300N3.50

Fa67/g gear-reducing box electricsType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

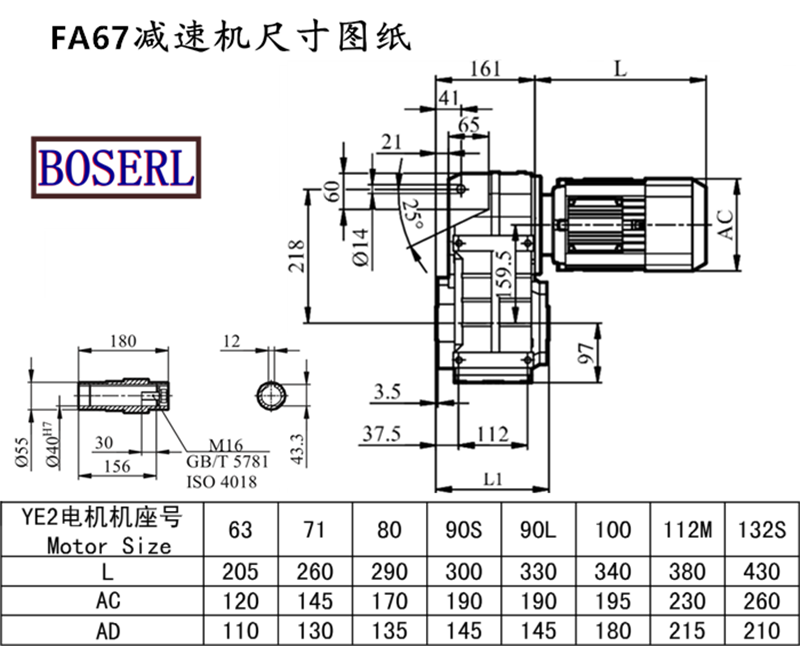

Fa67/g gear-reducing box electricsInstall size drawings



Fa67/g gear-reducing box electricsThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW


标签:   fa67/g gear-reducing box electrician  fa67/gy112m4ffa67/gy132m4 fa67/g gear-reducing box  fa67/g gear-reducing box  fa67/g gear-reducing container manufacturer  fa67/g gear-reducing box manufacturer
tags：    fa67/g gear-reducing box electrician    fa67/gy112m4ffa67/gy132m4   fa67/g gear-reducing box    fa67/g gear-reducing box    fa67/g gear-reducing container manufacturer    fa67/g gear-reducing box manufacturer

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FA67/G齿轮减速箱电机样本 Click to download
FA67/G齿轮减速箱电机三维图纸 Click to download
