FA67R37DM71S4Detailed Information
Keyword: 0. 25kw electric power with a parallel axle gear reduction box _fa67r37dm71s4_fa67r37drs80mk4
FA67R37DM71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DM71S4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FA67R37DM71S4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FA67R37DM71S4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FA67R37DM71S4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FA67R37DM71S4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FA67R37DM71S4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FA67R37DM71S4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FA67R37DM71S4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FA67R37DM71S4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FA67R37DM71S4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Fa67r37drs80mk4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DRS80MK4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FA67R37DRS80MK4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FA67R37DRS80MK4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FA67R37DRS80MK4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Fa67r37dm71s4 deviation motorType:
F67r37dm71s4 bottom foot installation of parallel axes - tiltsGearboc
Fa67br37dm71s4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dm71s4 bottom feet cascular axes installation of parallel axes - tilted gear retrenchors
Fa67r37dm71s4 sky axes installation of parallel axes - tilted gear deviators
Fv67r37dm71s4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dm71s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dm71s4 is the parallel axle of the b5-franco-axe-slash-slash-steal-steal-steal-steal-steal
Faz67r37dm71s4 is a parallel axle for b14 flannels - a slasher
Fvz67r37dm71s4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dm71s4 is a parallel axle for b5-slash gear brakes
Fh67br37dm71s4 foot hollow axle locks, parallel axle-slasher
Fh67r37dm71s4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock
Fhf67r37dm71s4 is a parallel axle-slasher for the b5 axle
Fhz67r37dm71s4 is the b14 flannel axle lock to install parallel axle-slasher

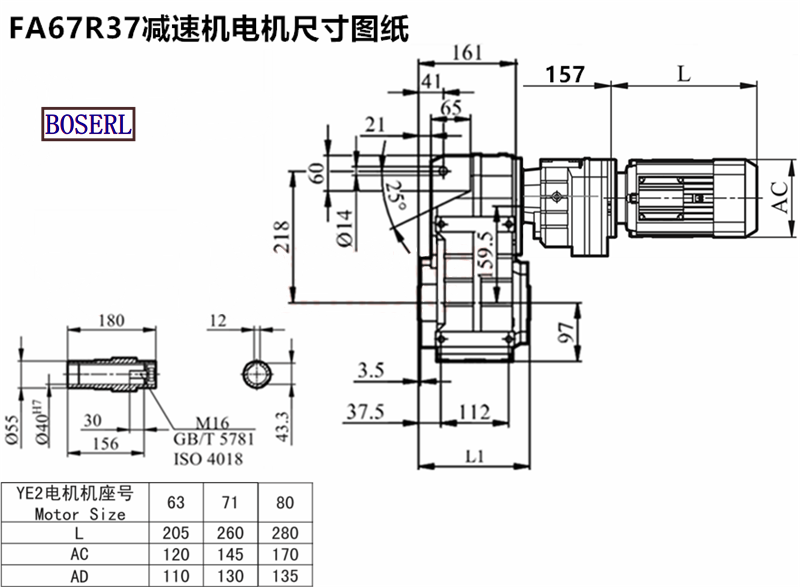

Fa67r37dm71s4 deviation motorInstall size drawings
Fa67r37dm71s4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
