FA67R37DT63M4Detailed Information
Keyword: 0. 18kw power with parallel axle brakes_ fa67r37dt63m4_fa67r37dre71m4
FA67R37DT63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DT63M4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FA67R37DT63M4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FA67R37DT63M4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FA67R37DT63M4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FA67R37DT63M4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FA67R37DT63M4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FA67R37DT63M4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FA67R37DT63M4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FA67R37DT63M4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FA67R37DT63M4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Fa67r37dre71m4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DRE71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67R37DRE71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67R37DRE71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67R37DRE71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67R37DRE71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67r37dt63m4 reduction motor Type:
F67r37dt63m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dt63m4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dt63m4 bottom feet axis installation of parallel axes - tilt rotation
Fa67r37dt63m4 sky axes installation of parallel axes - tied gear deviators
Fv67r37dt63m4 sky axis installation of parallel axes - tilt-truck deviators
Faf67r37dt63m4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dt63m4 is a parallel axle-slash gear-reducing machine for b5 franoids
Faz67r37dt63m4 is a parallel axle for b14f
Fvz67r37dt63m4 is a parallel axle for b14 flannel axle-slasher
Fff67r37dt63m4 is a parallel axle of b5-slash gear reduction
Fh67br37dt63m4 foot hollow axle locks, parallel axle-slash-slasher
Fh67r37dt63m4 is a parallel axle-slash-slasher for a hollow axle lock
Fhf67r37dt63m4 is a parallel axle-slasher for the b5 axle lock
Fhz67r37dt63m4 is a parallel axle-slasher for b14 aerocentric locks

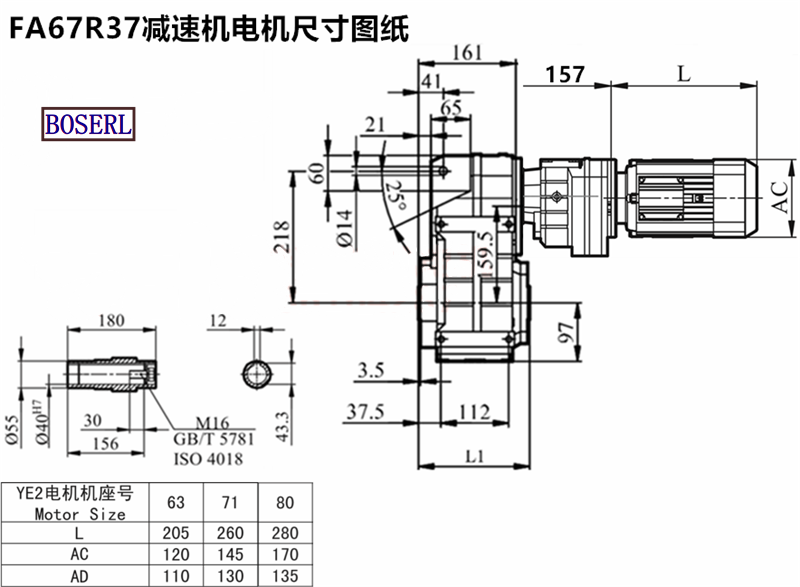

Fa67r37dt63m4 reduction motor Install size drawings
Fa67r37dt63m4 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
