FA67R37DT71D4Detailed Information
Keywords: what parallel axle gears for the 55kw powerer? _fa67r37dt71d4_fa67r37dre80s4
FA67R37DT71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DT71D4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67R37DT71D4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67R37DT71D4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67R37DT71D4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67R37DT71D4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67r37dre80s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DRE80S4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FA67R37DRE80S4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FA67R37DRE80S4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FA67R37DRE80S4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Fa67r37dt71d4 power driveType:
F67r37dt71d4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dt71d 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv67br37dt71d4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dt71d4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dt71d4 sky axis installation of parallel axes - tilt gear detachors
Faf67r37dt71d4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dt71d4 is a parallel axle-sweet gear-reducing machine for the b5-franco-air
Faz67r37dt71d4 is a parallel axle for b14f
Fvz67r37dt71d4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dt71d4 is a parallel to the b5-slash gear brake
Fh67br37dt71d4 foot hollow axle locks with parallel axles-slash gears reduction machines
Fh67r37dt71d4 is a parallel axle for an empty axle lock
Fhf67r37dt71d4 is the b5 franium axle locks to install parallel axle-slash-slasher
Fhz67r37dt71d4 is the b14 flannel axle lock to install parallel axle-slasher-slasher

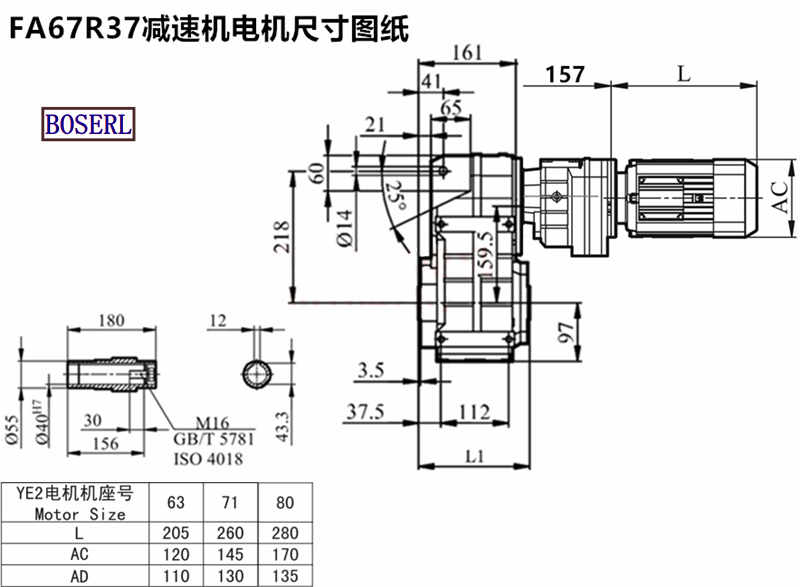

Fa67r37dt71d4 power driveInstall size drawings
Fa67r37dt71d4 power driveThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
