FA67R37DV80M4Detailed Information
Keyword: 2. 2 kw electric power with a parallel axle gear brake_ fa67r37dv80m4_fa67r37drn71m4
FA67R37DV80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DV80M4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FA67R37DV80M4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FA67R37DV80M4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FA67R37DV80M4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Fa67r37drn71m4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DRN71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67R37DRN71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67R37DRN71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67R37DRN71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67R37DRN71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67r37dv80m4 deviation motorType:
F67r37dv80m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dv80m4 foot hollow axis installed parallel axle-slash gear brake
Fv67br37dv80m4 bottom feet cascular axes installation of parallel axes - tilt gear deviators
Fa67r37dv80m4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dv80m4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dv80m4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dv80m4 is a parallel axle for b5 flannel cores - a slasher
Faz67r37dv80m4 is a parallel axle for b14f
Fvz67r37dv80m4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dv80m4 is a parallel to the b5-slash gear reduction machine
Fh67br37dv80m4 foot hollow axle lock, parallel axle-slasher
Fh67r37dv80m4 is a parallel axle-slash-slasher for the empty axle lock
Fhf67r37dv80m4 is the parallel axle for the b5 axle lock-drive
Fhz67r37dv80m4 is a parallel axle for the b14 axle lock-drive

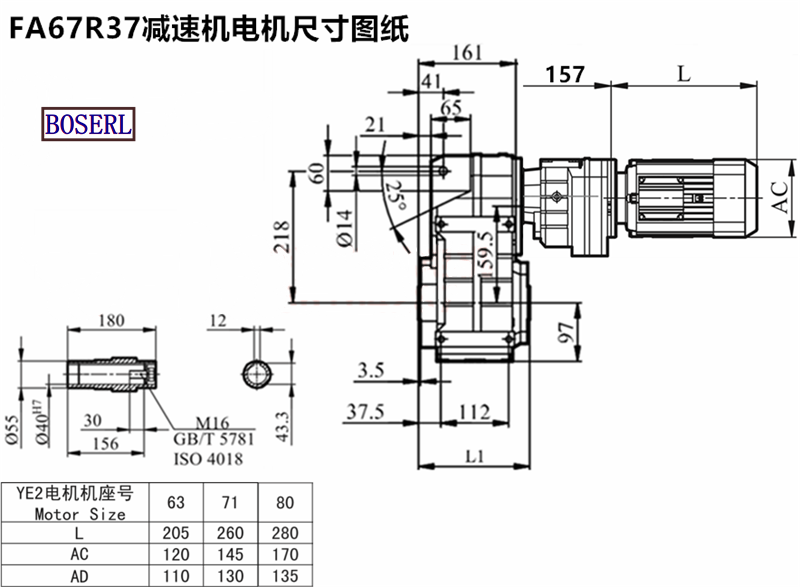

Fa67r37dv80m4 deviation motorInstall size drawings
Fa67r37dv80m4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What kind of parallel axle gear brakes do the 2. 2kw power? fa67r37dv80m4ffa67r37drn71m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA67R37DV80M4减速机样本 |
|
| FA67R37DV80M4减速机三维图纸 |
|
