FA67R37DVE71M4Detailed Information
Keyword: what is the parallel axle gear reduction box for the 4kw power unit
FA67R37DVE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DVE71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67R37DVE71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67R37DVE71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67R37DVE71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67R37DVE71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67r37dr63m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67R37DR63M4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FA67R37DR63M4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FA67R37DR63M4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FA67R37DR63M4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FA67R37DR63M4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FA67R37DR63M4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FA67R37DR63M4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FA67R37DR63M4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FA67R37DR63M4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FA67R37DR63M4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Fa67r37dve71m4 deviation engineType:
F67r37dve71m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dve71m4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dve71m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dve71m4 sky axis installed parallel axle-slash gear reduction machine
Fv67r37dve71m4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dve71m4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dve71m4 is a parallel axle-slash gear-reducing machine for b5-franco-axes
Faz67r37dve71m4 is a parallel axle for b14f
Fvz67r37dve71m4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dve71m4 is a parallel to the b5-slash gear-reducing machine
Fh67br37dve71m4 foot hollow axle lockboards installed parallel axes - slash gear reduction machines
Fh67r37dve71m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf67r37dve71m4 is a parallel axle for the b5 axle lock, a slasher
Fhz67r37dve71m4 is a parallel axle-slasher for b14 flannel axle locks

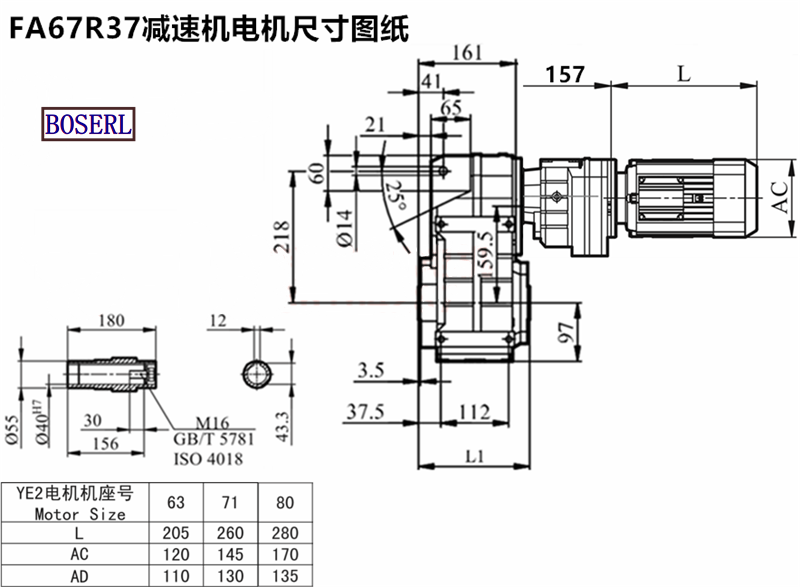

Fa67r37dve71m4 deviation engineInstall size drawings
Fa67r37dve71m4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
