FA67RF37-Y0.12KWDetailed Information
Keywords: 132kw ' s powerer with a parallel axle gear reduction box_fa67rf37-y0. 12kw_fa67rf37-y80m4
FA67RF37-Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y0.12KW | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FA67RF37-Y0.12KW | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FA67RF37-Y0.12KW | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FA67RF37-Y0.12KW | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FA67RF37-Y0.12KW | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FA67RF37-Y0.12KW | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FA67RF37-Y0.12KW | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FA67RF37-Y0.12KW | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FA67RF37-Y0.12KW | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FA67RF37-Y0.12KW | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Fa67rf37-y80m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y80M4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FA67RF37-Y80M4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FA67RF37-Y80M4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FA67RF37-Y80M4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Fa67rf37-y0. 12kw power driveType:
F67rf37-y0. 12kw bottom foot installation of parallel axes - tiltsGearboc
Fa67brf37-y0. 12kw foot hollow axis installed parallel axle-slash gear reduction machine
Fv67brf37-y0. 12kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa67rf37-y0. 12kw sky axes installation of parallel axes - tilted gear deviators
Fv67rf37-y0. 12kw sky axis installation of parallel axes - tilt gear detachors
Faf67rf37-y0. 12kw is the parallel axle-slash gear-reducing machine for the b5 french aerocentric axis
Fvf67rf37-y0. 12kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz67rf37-y0. 12kw is a parallel axle of b14 installed in flange - a slasher
Fvz67rf37-y0. 12kw is the parallel axis of the b14 flannel axle-slasher
Ff67rf37-y0. 12kw is a parallel to the b5-slash gear reduction machine
Fh67brf37-y0. 12kw foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh67rf37-y0. 12kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf67rf37-y0. 12kw is a parallel axle-slasher for the b5 axle lockboard-slasher
Fhz67rf37-y0. 12kw is the parallel axle-slasher for the b14 aerocentric lockboard

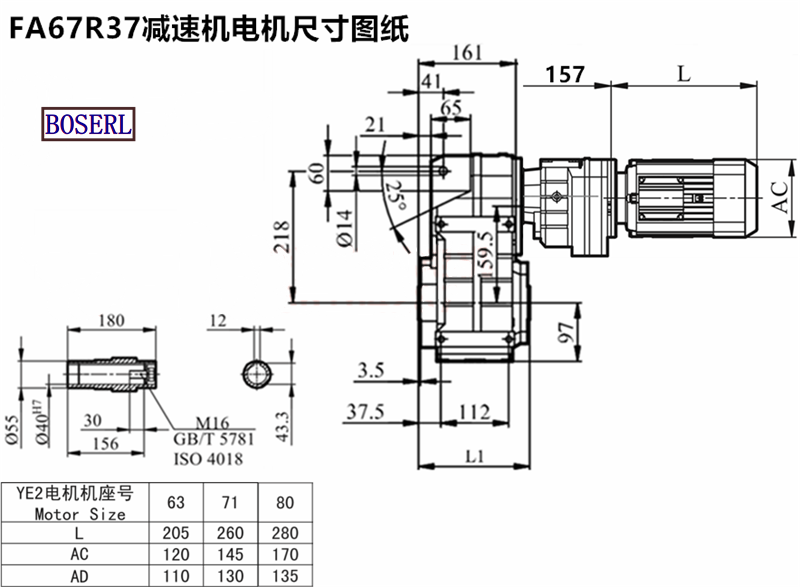

Fa67rf37-y0. 12kw power driveInstall size drawings
Fa67rf37-y0. 12kw power driveThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
