FA67RF37-Y0.18KWDetailed Information
Keyword: 160kw powerer with parallel axle gear reduction box_fa67rf37-y0. 18kw_fa67rf37-y71m4
FA67RF37-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y0.18KW | 858 | 0.18KW | 1.50r/min | 940N.m | 69.5kg | 8660N | 0.85 |
| FA67RF37-Y0.18KW | 755 | 0.18KW | 1.80r/min | 820N.m | 69.5kg | 10200N | 1.00 |
| FA67RF37-Y0.18KW | 641 | 0.18KW | 2.10r/min | 700N.m | 69.5kg | 11200N | 1.15 |
| FA67RF37-Y0.18KW | 572 | 0.18KW | 2.30r/min | 645N.m | 69.5kg | 11600N | 1.25 |
| FA67RF37-Y0.18KW | 509 | 0.18KW | 2.60r/min | 555N.m | 69.5kg | 12100N | 1.45 |
| FA67RF37-Y0.18KW | 437 | 0.18KW | 3.00r/min | 480N.m | 69.5kg | 12500N | 1.70 |
| FA67RF37-Y0.18KW | 384 | 0.18KW | 3.40r/min | 430N.m | 69.5kg | 12700N | 1.90 |
| FA67RF37-Y0.18KW | 500 | 0.18KW | 2.60r/min | 575N.m | 69.5kg | 12000N | 1.40 |
| FA67RF37-Y0.18KW | 454 | 0.18KW | 2.90r/min | 525N.m | 69.5kg | 12300N | 1.55 |
| FA67RF37-Y0.18KW | 392 | 0.18KW | 3.40r/min | 450N.m | 69.5kg | 12600N | 1.80 |
| FA67RF37-Y0.18KW | 333 | 0.18KW | 4.00r/min | 380N.m | 69.5kg | 12900N | 2.20 |
| FA67RF37-Y0.18KW | 297 | 0.18KW | 4.40r/min | 335N.m | 69.5kg | 13000N | 2.40 |
| FA67RF37-Y0.18KW | 261 | 0.18KW | 5.10r/min | 295N.m | 69.5kg | 13000N | 2.80 |
| FA67RF37-Y0.18KW | 238 | 0.18KW | 5.60r/min | 260N.m | 69.5kg | 13000N | 3.10 |
| FA67RF37-Y0.18KW | 200 | 0.18KW | 6.60r/min | 215N.m | 69.5kg | 13000N | 3.70 |
Fa67rf37-y71m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67RF37-Y71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67RF37-Y71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67RF37-Y71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67RF37-Y71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67rf37-y0. 18kw power driveType:
F67rf37-y0. 18kw bottom foot installation parallel axes - tilt gearGearboc
Fa67brf37-y0. 18kw foot hollow axis installed parallel axle-slasher
Fv67brf37-y0. 18kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa67rf37-y0. 18kw sky axis installation of parallel axes - tilt gear deviators
Fv67rf37-y0. 18kw sky axis installation of parallel axes - tilt gear deviators
Faf67rf37-y0. 18kw is the parallel axle of the b5 aerocentric axle-slasher
Fvf67rf37-y0. 18kw is a parallel axle-slash gear-reducing machine installed on the b5 flannel axis
Faz67rf37-y0. 18kw is a parallel to the b14 flank installation of a side axle-slasher
Fvz67rf37-y0. 18kw is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff67rf37-y0. 18kw is a parallel to the b5 installation of a side axle - a slasher
Fh67brf37-y0. 18kw bottom foot hollow axle locks to install parallel axes - slash gears toglers
Fh67rf37-y0. 18kw is a parallel axle-slash-slasher for empty axle locks
Fhf67rf37-y0. 18kw is the parallel axle for the b5 axle locker-slasher-slasher
Fhz67rf37-y0. 18kw is a parallel axle-sweet gear-reducing machine installed on a b14 flanx lockboard

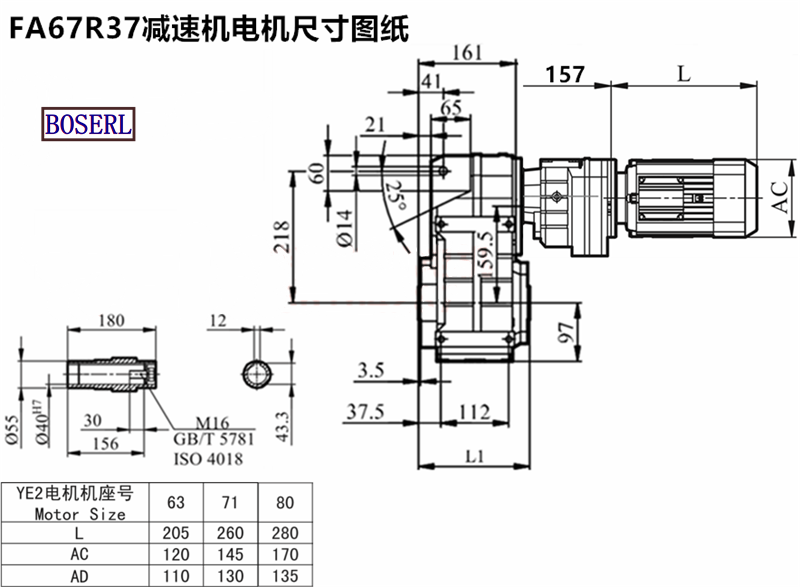

Fa67rf37-y0. 18kw power driveInstall size drawings
Fa67rf37-y0. 18kw power driveThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 160kw power plant with parallel axle gear reduction box fa67rf37-y0. 18kw fa67rf37-y71m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA67RF37Y0.18KW减速机样本 |
|
| FA67RF37Y0.18KW减速机三维图纸 |
|
